Striker, Removing And Installing: Removing

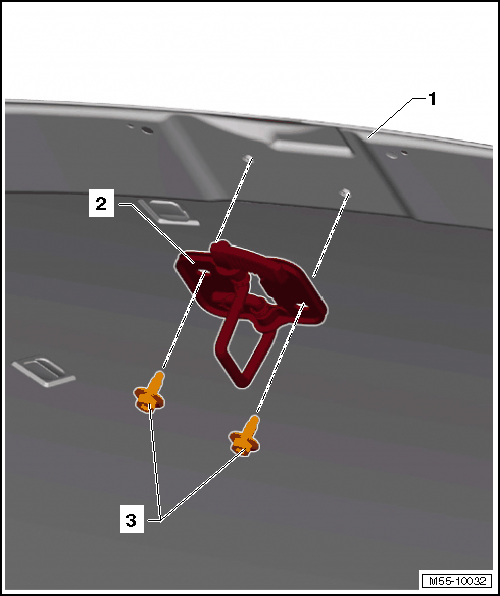

GWWM55-10032

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the hood -1-.

-- Remove the bolts -3-.

-- Remove the striker -2- from the hood -1-.
