Engine Support Bracktes

WARNING: This page is about a different car, the 2017 Volkswagen GTI, 2016 Volkswagen GTI, 2015 Volkswagen Golf, and 2015 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

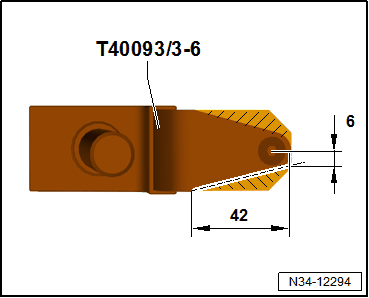

Fig 1: : T40093/3-6 (Check and Replace if Necessary)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the marked area if necessary.

-- Round off the front edges.

-- Protect the Bracket against corrosion.

-- Then mark the :T40093/3-6 with :T40093/3-6A .

The :10-222A and the :T40093/3-6A will be mounted on the longitudinal members later in the procedure.

So that the longitudinal member will not be damaged, tape around the :T40093/3-6A in the front area with cloth tape. Refer to the Electronic Parts information.
