Special Tools

WARNING: This page is about a different car, the 2017 Volkswagen GTI, 2016 Volkswagen GTI, 2015 Volkswagen Golf, and 2015 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine Support Bridge:10-222A
Engine Support Bridge - Engine Support 29:10-222A/29
Engine Support Bridge - Engine Support 18:10-222A/18
Engine/Gearbox Support Shackle (2 pc.):10-222A/12 (quantity 2)
Transmission Support - Pins 29:3282/29
Transmission Support:3282

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine and Gearbox Jack:VAS6931
Transmission Support - Mounting Plate 42A:3282/42A
Hose Clamps - Up To 25mm:3094
Tensioning Strap:T10038
Engine Bung Set:VAS6122
Insert Tool - 18mm:T10179

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine Support Bridge:10-222A
Engine/Gearbox Support Shackle (2 pc.):10-222A/12
Engine Support Bridge - Engine Support 31:10-222A/31
Engine Support - Basic Set:T40091
Engine Support - Supplement Kit:T40093A
Transmission Support:3282

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

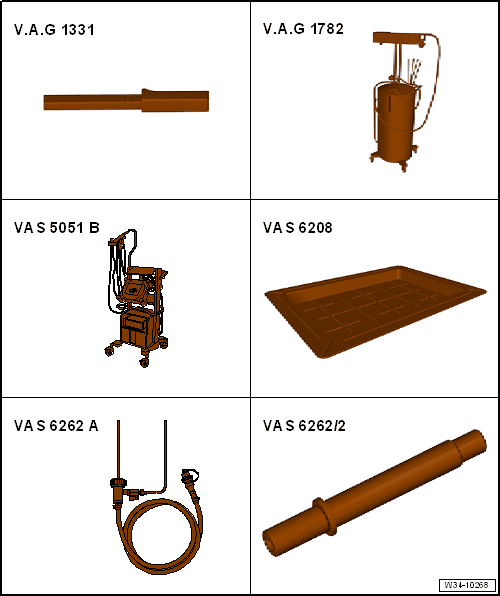

Special tools and workshop equipment required

Torque Wrench 5-50Nm:VAG1331
Used Oil Collection and Extraction Unit:SMN372500
Vehicle Diagnostic Tester
Shop Crane - Drip Tray:VAS6208
Oil Filler:VAS6262A
Oil Filler - Adapter 2:VAS6262/2

Special tools and workshop equipment required

Wrench - Pump/Injector Long Reach:T10054

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket - Xzn 14:T10061

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket And Extended Bit:T10107A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Gearbox Support:T10108

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Counterhold - Multiple Use:T10172A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support Device - Gearbox Bracket:T10346/1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Insert Tool 18 mm:T10509

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Crankshaft/Power Steering Seal:T20143

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support - Basic Set Square Pipe:T40091/1 (quantity 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support - Basic Set Movable Joint:T40091/3 (quantity 2)
Engine Support Supplement Set - Spindle:T40093/3 (quantity: 2) from the Engine Support Supplement Set:T40093B
Engine Support Brackets:T40093/3-6 (quantity 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support:T50015A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clip Pliers:VAG1275A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine And Transmission Holder:VAS6095

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shop Crane:VAS6100

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Also for some oil containers Oil Filler - Adapter 6:VAS6262/6

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Holding Plate:VW309A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Holding Fixture:VW313

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Transmission Support:VW353

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Shift Rod/Alternator:VW423

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support Bridge - Special Hook (2 pc.):10-222A/20

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Sling:2024A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Sling - Engine Bracket:2024A/1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hex Ball Socket:3247

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Transmission Support Jig:3336

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
