Lower Toothed Belt Guard, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

To make to production at the factory more simple, the lower toothed belt guard engages with a guide into the sealing flange. To disassemble the lower toothed belt guard with the engine support installed this toothed belt guard guide must be damaged.

There are different versions.

-- Remove the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

CAUTION:

Carefully perform the following step! By damaging the toothed belt there is a threat of engine damage.

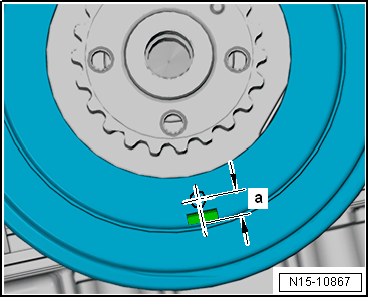

-- If the toothed belt guard comes out of the standard holes, set using the following dimensions:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Dimension -a- : = 10 mm
Diameter 8 mm

-- Guide a screwdriver through the holes and break the toothed belt guard guide tabs rearward.

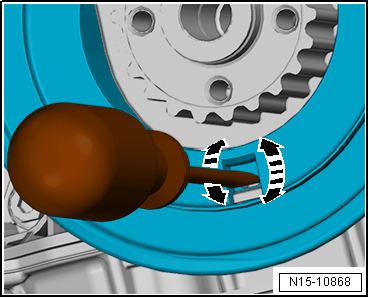

-- For a new version toothed belt guard place the screwdriver in the guide tab slot.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- By turning the screwdriver in the direction of -arrow- the guide tabs break.

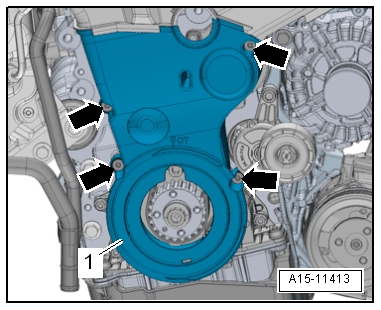

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower toothed belt guard -1-.
