Special Tools

WARNING: This page is about a different car, the 2015 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Torque Wrench 1332 40-200 Nm :VAG1332
Torque Wrench 1332 Insert - Open Jaw - 22mm:VAG1332/12

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Counterhold - Camshaft Gear:T10051

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Unit Injector:T10055

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
O-Ring Assembly Sleeve:T10377

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Diesel Engine Tool Set - 17mm - Socket Wrench:T10395/3 or Diesel Engine Tool Set - 17mm - Socket Wrench:T10395/11

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Injector:T10415

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller:T10489

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Oxygen Sensor Socket - 22mm:T10491

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Locking Pin:T10492

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket Bit XZN 10:T10501

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

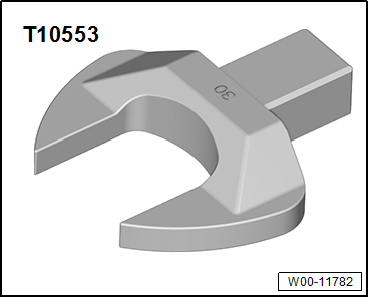

Tool Insert AF 30:T10553

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Union Nut Socket:T40055

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket - 27mm:T40218

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1331 5-50 Nm :VAG1331

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1331 Insert - Open Jaw - 17mm:VAG1331/6

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1332 40-200 Nm :VAG1332

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Wiring Harness Repair Set - Hot Air Blower:VAS1978/14A -1- with nozzle attachment -2- from the Wiring Harness Repair Set:VAS1978B .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hand Vacuum Pump:VAS6213

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clip Pliers:VAS6362

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Return Flow Meter:VAS6684

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Mini Torque Wrench:VAS6854

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clamps - Up To 25mm:3094

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Ring Wrench 7-Piece Set:3337

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Measuring container, fuel-resistant
