Special tools and workshop equipment required

Puller - Seal Lever:VW681
Drive Sleeve:30-20
Counterhold - Crankshaft Sprocket:3415
Seal Installer - Shaft Seal Ring:T10019
Puller - Kukko 3 Jaw - 100x100mm:12/1
Torque Wrench 1601:VAG1601

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Locking Pin Driver:30-505
Bearing Installer - Clutch Housing/Gearbox Bearing:VW554
Bushing Installer - Rear Axle Beam:3128
Rear Bushing Tool - Press Piece:T40033/1
Assembly Tool Kit - Traverse:T10030/5
Bearing Installer - Component:3346/2 , Control Arm Bearing Installer - Nut:3346/3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Puller - Seal Lever:VW681
Slide Hammer Set:VW771
Holding Fixture - Spacers:VW540/1B
Transmission Support - Bolt:3282/34
Seal Installer - Flange Shaft:T10049
Bridge from Puller:VAS251415 (Kukko 18-0)
Sealing Grease.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Thrust Piece3291/1 from the Bushing Tool Kit:3291
Spindle from the Bushing Tool Set:3292
Thrust pieces 3348 and 3348/1 from the Bearing Installer - Multiple Use:3348
Puller - Kukko Internal - 46-56mm:21/7 -1-
Puller - Kukko Counterstay:22/2 -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Torque Wrench 5-50Nm:VAG1331
Torque Wrench 1332 40-200Nm:VAG1332
Engine and Gearbox Jack:VAS6931

Special tools and workshop equipment required

Used Oil Collection and Extraction Unit:SMN372500

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Multipoint Socket:T10035 and if necessary Bits for VAG1331/13:T10099

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Charging Device For BorgWarner Coupling 2 - Adapter 2:VAS6291/1-2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Charging Device For BorgWarner Coupling 2 - Adapter 3:VAS6291/3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-1- Internal Puller:VAS251601 (Kukko 21-1)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-4- Counter Support:VAS251621 (Kukko 22-1)
Tensioning Strap:T10038

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Guide Pins:T10093

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Counterhold - Kit - Multiple Use:T10172

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 5-50Nm:VAG1331

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shop Crane - Drip Tray:VAS6208

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

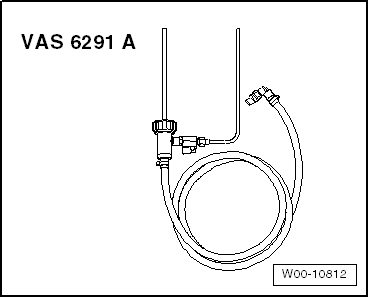

Charging Device For BorgWarner Coupling 2:VAS6291A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Oil Filler - Adapter 2:VAS6262/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Seal Lever:VW681

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Slide Hammer Set:VW771

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

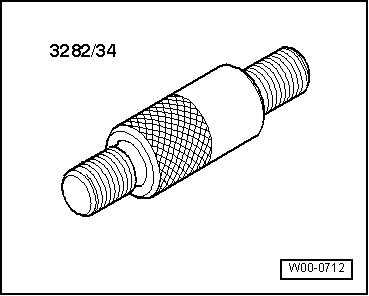

Transmission Support - Pins 34:3282/34

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Seal Installer - Flange Shaft:3305

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-2- bridge from Puller - Kukko Puller - 50-110mm Width, 150mm Length:18/0
