Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Press Plate:VW401
• Press Plate:VW402
• Press Piece - Rod:VW407
• Press Piece - Multiple Use:VW412
• Bearing Installer - Rear Wheel Bearing Kit:VAS3253
• Bearing Installer - Needle Bearing:T10047

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Holding Fixture:VW313
• Press Piece - 42mm:VW516
• Press Piece - Multiple Use:40-105
• Seal Installer - Flange Shaft:T10049
• Gearbox Support:T10108
• Gearbox Support:T10108/1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

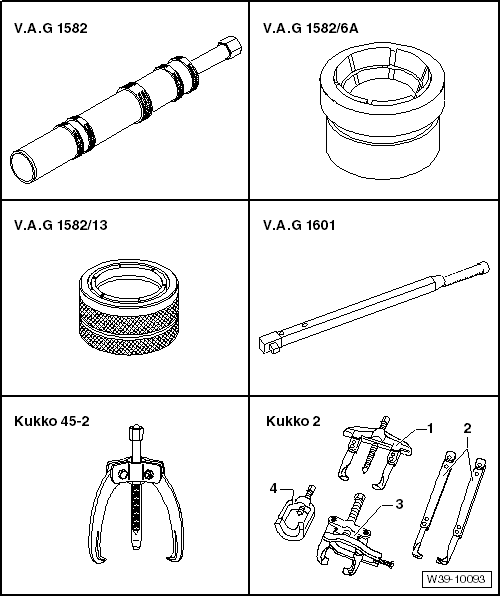

Special tools and workshop equipment required

• Puller - Taper Roller Bearing:VAG1582  with a short sleeve
• Puller - Taper Roller Bearing - Adapter 6A:VAG1582/6A
• Puller - Taper Roller Bearing - Adapter 13:VAG1582/13
• Torque Wrench 1601:VAG1601
• Three-Arm Puller:VAS251205  (45-2)
• -1- Three-Arm Puller:VAS251001  (20-10)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Press Piece - Multiple Use:VW412
• Press Piece - Multiple Use:VW454
• Press Piece - Multiple Use:VW455
• Press Plate:VW401
• Two M8 x 30 mm stud bolts or Guide Pins - M8:T10273
• Removal Device Pin 2:VW460/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Puller - Taper Roller Bearing:VAG1582
• Puller - Taper Roller Bearing - Adapter 6A:VAG1582/6A
• Torque Wrench 1601:VAG1601
• -1- Three-Arm Puller:VAS251001  (20-10)
• Three-Arm Puller:VAS251205  (45-2)

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit:SMN372500

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Puller - Flanged Shaft:T10037

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Tensioning Strap:T10038

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Socket And Extended Bit:T10107A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Bevel Box:T10243

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Bevel Box:T10298

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Puller - Crankshaft/Power Steering Seal:T20143

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Torque Wrench 1331 5-50Nm:VAG1331

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Shop Crane - Drip Tray:VAS6208

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Charging Device For BorgWarner Coupling 2:VAS6291A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Charging Device For BorgWarner Coupling 2 - Adapter 2:VAS6291/2

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Digital Thermometer:VAS6519

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Slide Hammer Set:VW771

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Slide Hammer Set - Hook:VW771/37

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Axle Flange:3158

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Flange Shaft:3305

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
