Left Seal, Replacing: Removing

WARNING: This page is about a different car, the 2017 Volkswagen GTI, 2016 Volkswagen GTI, 2015 Volkswagen Golf, and 2015 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

The transmission is installed.

-- Lift the vehicle, all four mounts from lifting platform at the same height.

-- Move the selector lever to >>P<<.

NOTE:

Do not lower the vehicle onto the floor after loosening central screw.

-- Press the brake and remove the bolt for the left drive axle -arrow- (second technician).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the left front wheel.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the lower section of the left front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Remove the left drive axle. Refer to DRIVE AXLE .

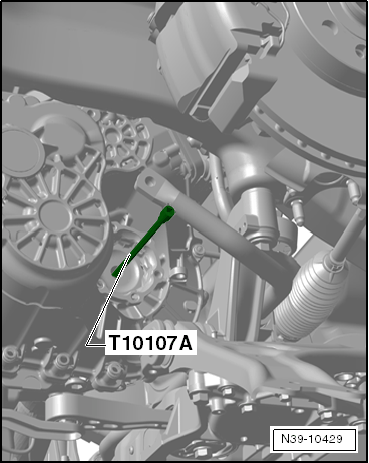

-- Remove the left transmission flange shaft using the :T10107A .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The bolt has a 6 mm inner hex socket The bolt can also be removed and installed using the :VAG1669 .

-- To remove and install the flange shaft, install two bolts into the flange and counterhold it using a pry bar.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the flange shaft.

-- Place the :SMN372500 or Drip Tray under the transmission.

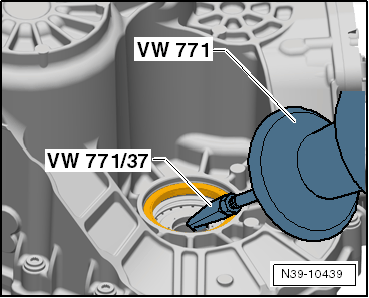

-- Remove seal with :VW771 and :VW771/37 .
