Right Flange Shaft, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Volkswagen GTI, 2016 Volkswagen GTI, 2015 Volkswagen Golf, and 2015 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Transmission is installed.

WARNING:

Follow these instructions exactly to avoid damaging flange shaft polygon bearing.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- If equipped, remove the right drive axle heat shield from the bevel box -arrows-. Refer to DRIVE AXLE .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the right drive axle. Refer to DRIVE AXLE .

-- Place the :SMN372500 under the transmission.

-- Drain the fluid from the bevel box, bolt -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Then install the new bolt and tighten.

-- Remove the bolt for the right flange shaft -arrow- using the :T10107A .

-- To remove and install the flange shaft, install two bolts into the flange and counterhold it using a pry bar.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

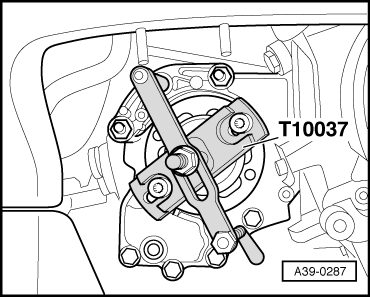

-- Remove the flange shaft using the :T10037 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
