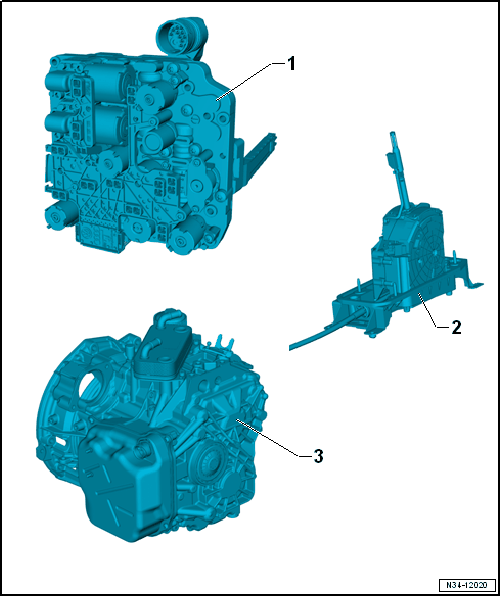

Component Location Overview - Electrical Components
WARNING: This page is about a different car, the 2017 Volkswagen GTI, 2016 Volkswagen GTI, 2015 Volkswagen Golf, and 2015 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
- DSG Transmission Mechatronic -J743-
- Installed behind the transmission cover
- Removing and installing. Refer to MECHATRONIC, REMOVING AND INSTALLING .
- Selector Lever -E313-
- Contains:
- Selector Lever Sensor System Control Module -J587-
- Shift Lock Solenoid -N110-
- Selector Lever Park Position Lock Switch -F319-
- The components are integrated in the circuit board for the shift mechanism function unit and cannot be replaced individually.
- Checking. Refer to Vehicle Diagnostic Tester.
- Removing and installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Contains:
- 6-Speed DSG® Transmission
