Mounting, Aligning

WARNING: This page is about a different car, the 2015 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

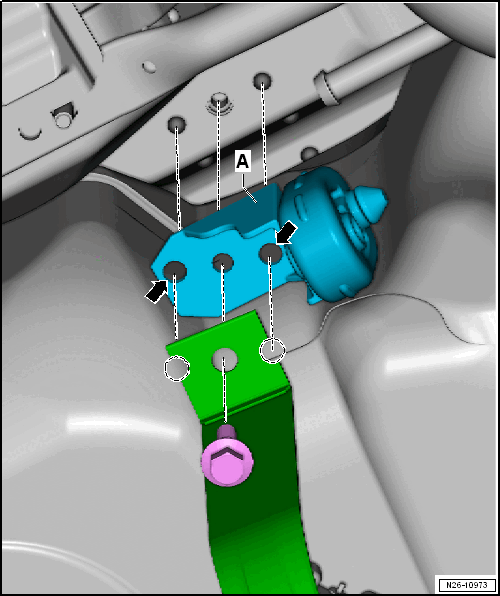

GWWN26-10973Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pre-tighten the bolt.

-- Align the mounting over the oblong hole.

-- Center the holes -arrows- of the mounting -A- using the blunt side of a commercially available 8 mm drill.

-- Then tighten to the tightening specification.

-- Do the same with the remaining suspended mounts.
