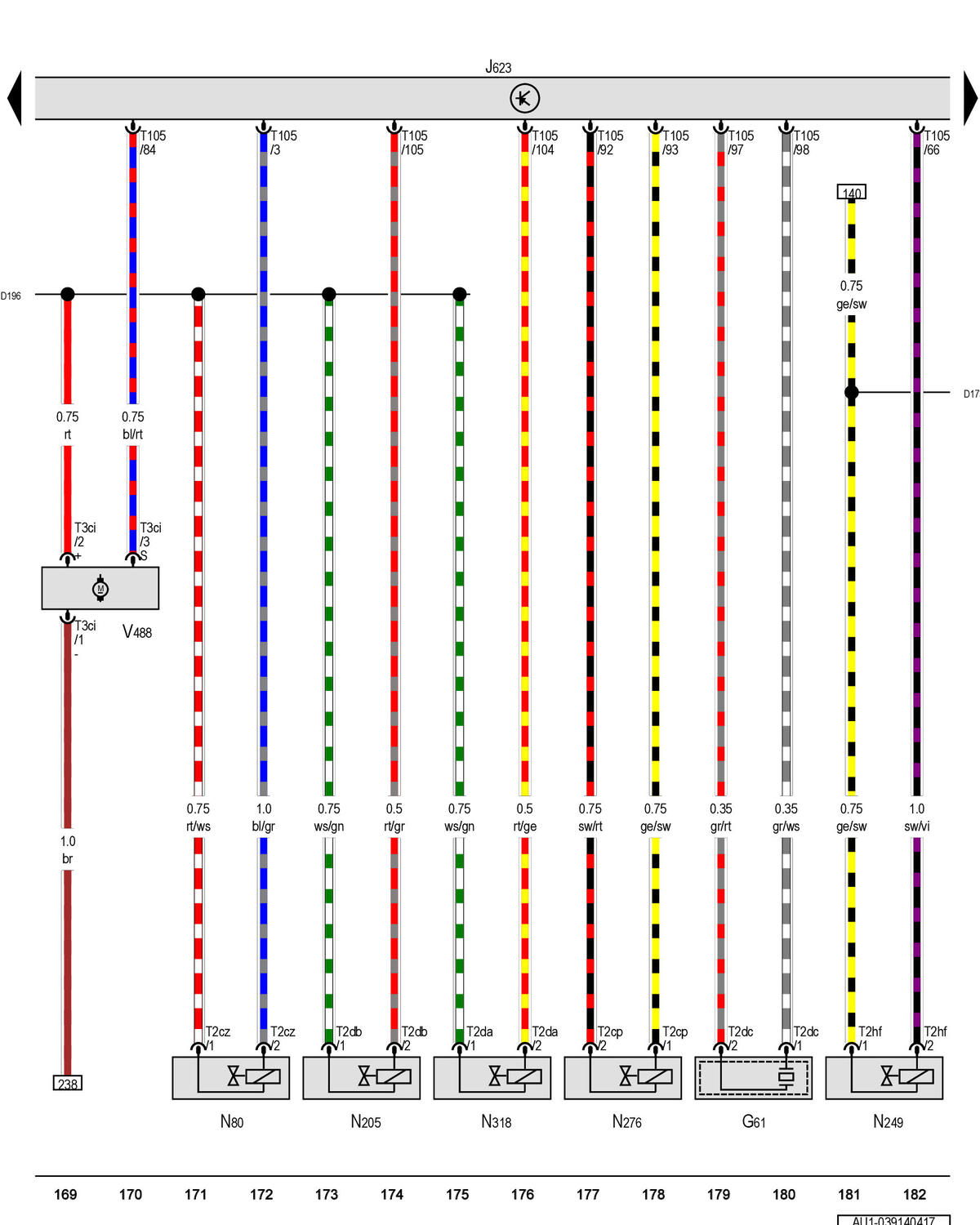

Knock Sensor 1, Engine Control Module, EVAP Canister Purge Regulator Valve 1, Camshaft Adjustment Valve 1, Turbocharger RECIRCULATION Valve, Fuel Pressure Regulator Valve, Exhaust Camshaft Adjustment Valve 1, Heater Support Pump: Notes

GWWAU1-039140417Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
