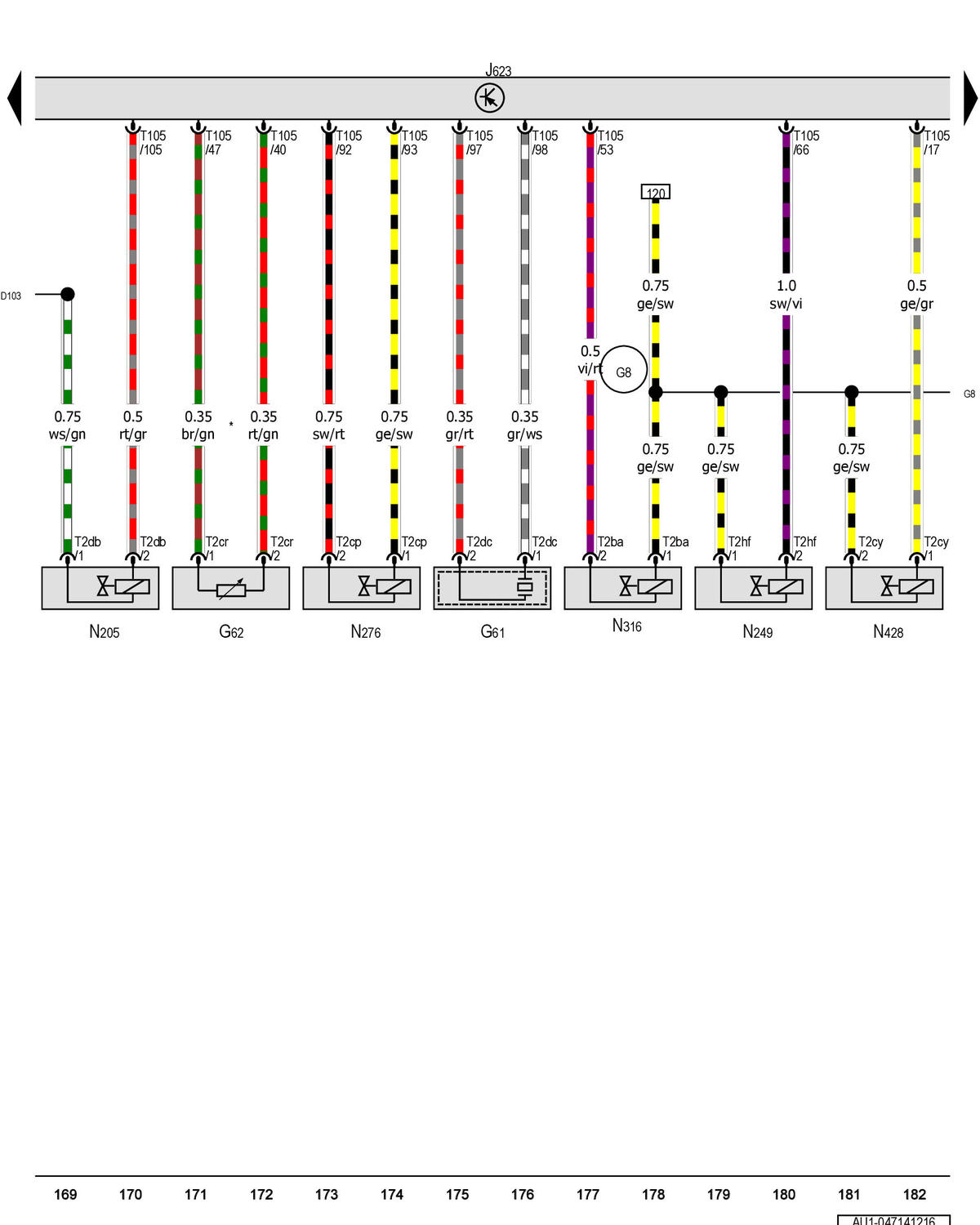

Knock Sensor 1, Engine Coolant Temperature Sensor, Engine Control Module, Camshaft Adjustment Valve 1, Turbocharger RECIRCULATION Valve, Fuel Pressure Regulator Valve, Intake Manifold Runner Control Valve, Oil Pressure Regulation Valve: Notes

GWWAU1-047141216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
