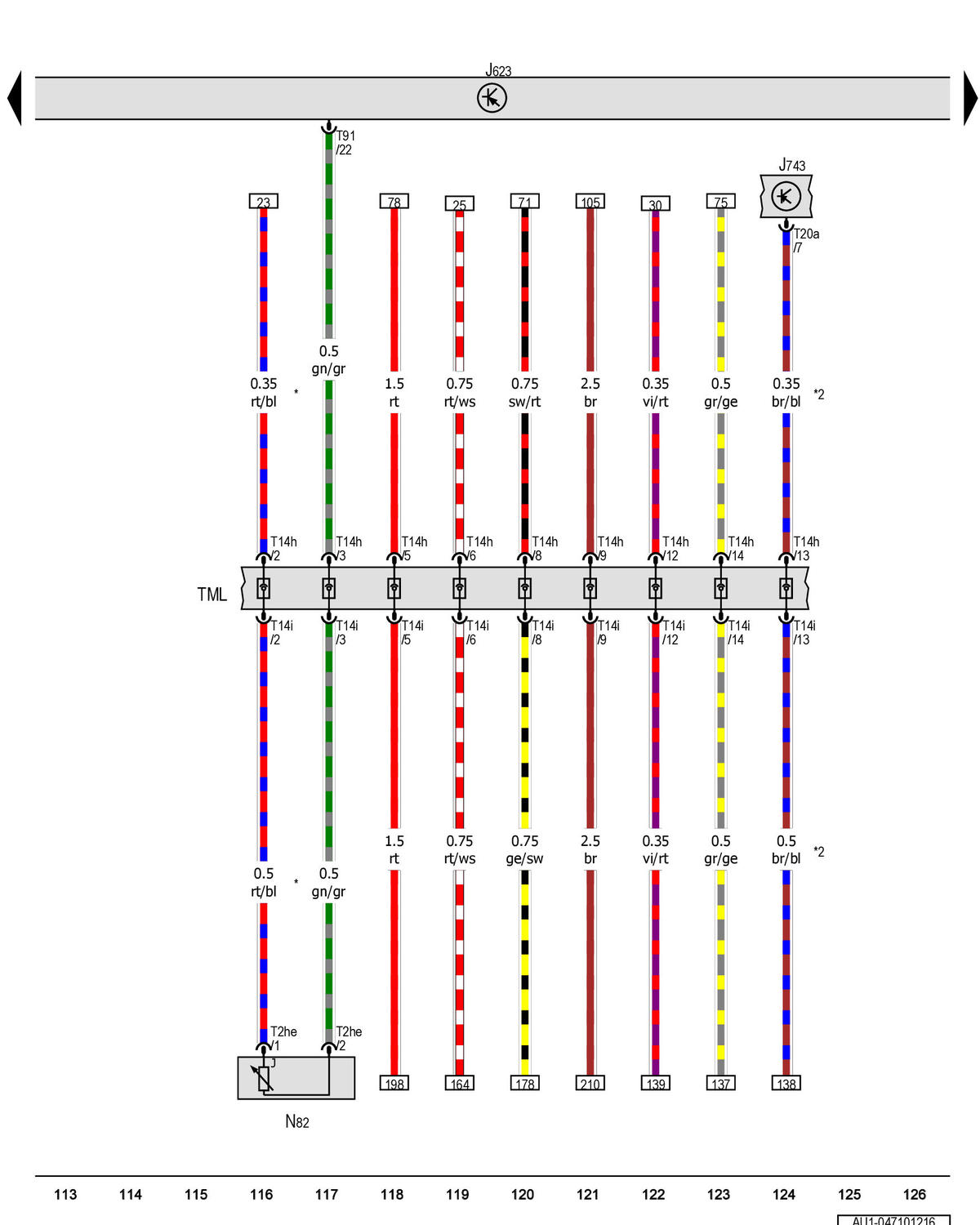

Engine Control Module, Dual-Clutch Transmission MECHATRONIC, Coolant Shut-Off Valve: Notes

GWWAU1-047101216

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
