Overview - Underbody Trim Panels

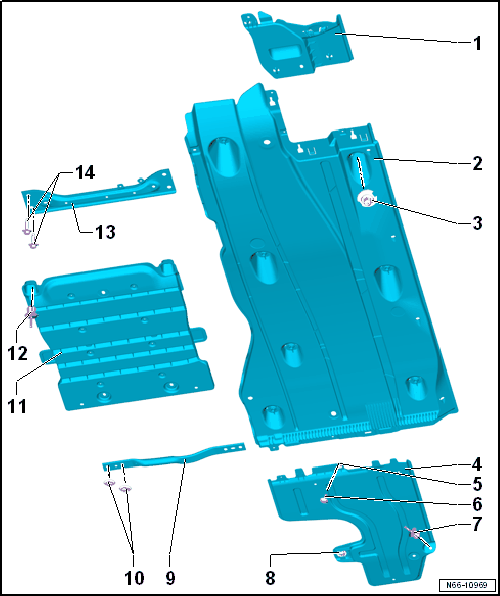

Fig 1: Exploded View Of Underbody Trim Panels With Nuts & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Cover
- Left and right
- Removing and Installing. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .
Underbody Trim Panels
- Left and right
- Removing and Installing. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .
Nut
- 2 Nm
- With fastener
- Quantity: 7 on each side
Rear Underbody Trim Panel
- Removing and Installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
Spring Nut
Bolt
- 2 Nm
Expanding Rivet
Lock Washer
Rear Tunnel Brace
- Removing and Installing. Refer to REAR TUNNEL BRACE, REMOVING AND INSTALLING .
Nut
- 20 Nm
- Quantity: 2 on each side
Center Underbody Trim Panel
- Removing and Installing. Refer to CENTER UNDERBODY PANELS, REMOVING AND INSTALLING .
Expanding Rivet
- Quantity: 4
Front Tunnel Brace
- Removing and Installing. Refer to FRONT TUNNEL BRACE, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Quantity: 2 on each side
