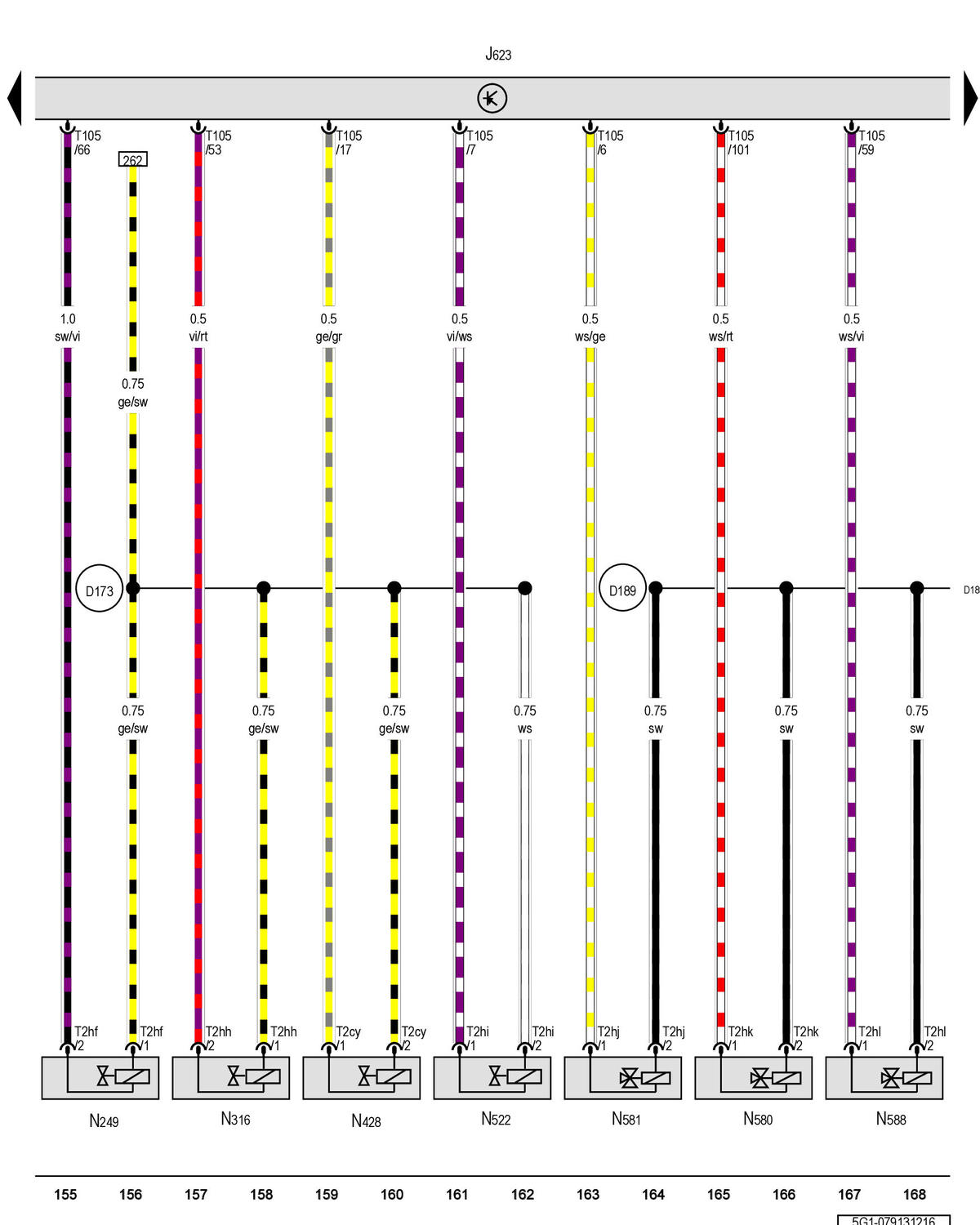

Engine Control Module, Turbocharger RECIRCULATION Valve, Intake Manifold Runner Control Valve, Oil Pressure Regulation Valve, Piston Cooling Nozzle Control Valve, Cylinder 1 Exhaust Cam Actuator A, Cylinder 1 Exhaust Cam Actuator B, Cylinder 2 Exhaust Cam Actuator A: Notes

GWW5G1-079131216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
