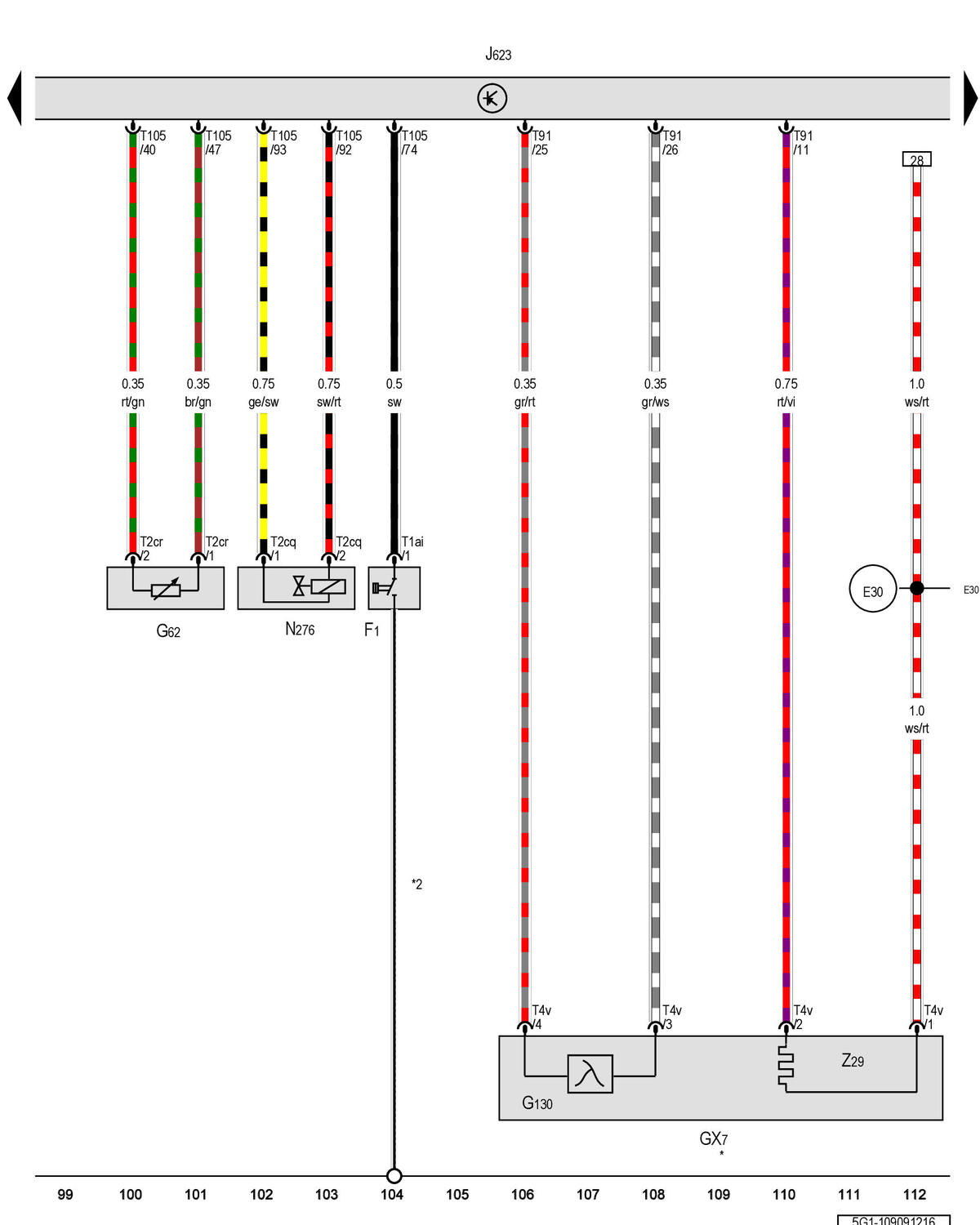

Oil Pressure Switch, Oxygen Sensor 1 After Catalytic Converter, Engine Coolant Temperature Sensor, Engine Control Module, Fuel Pressure Regulator Valve: Notes

GWW5G1-109091216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
