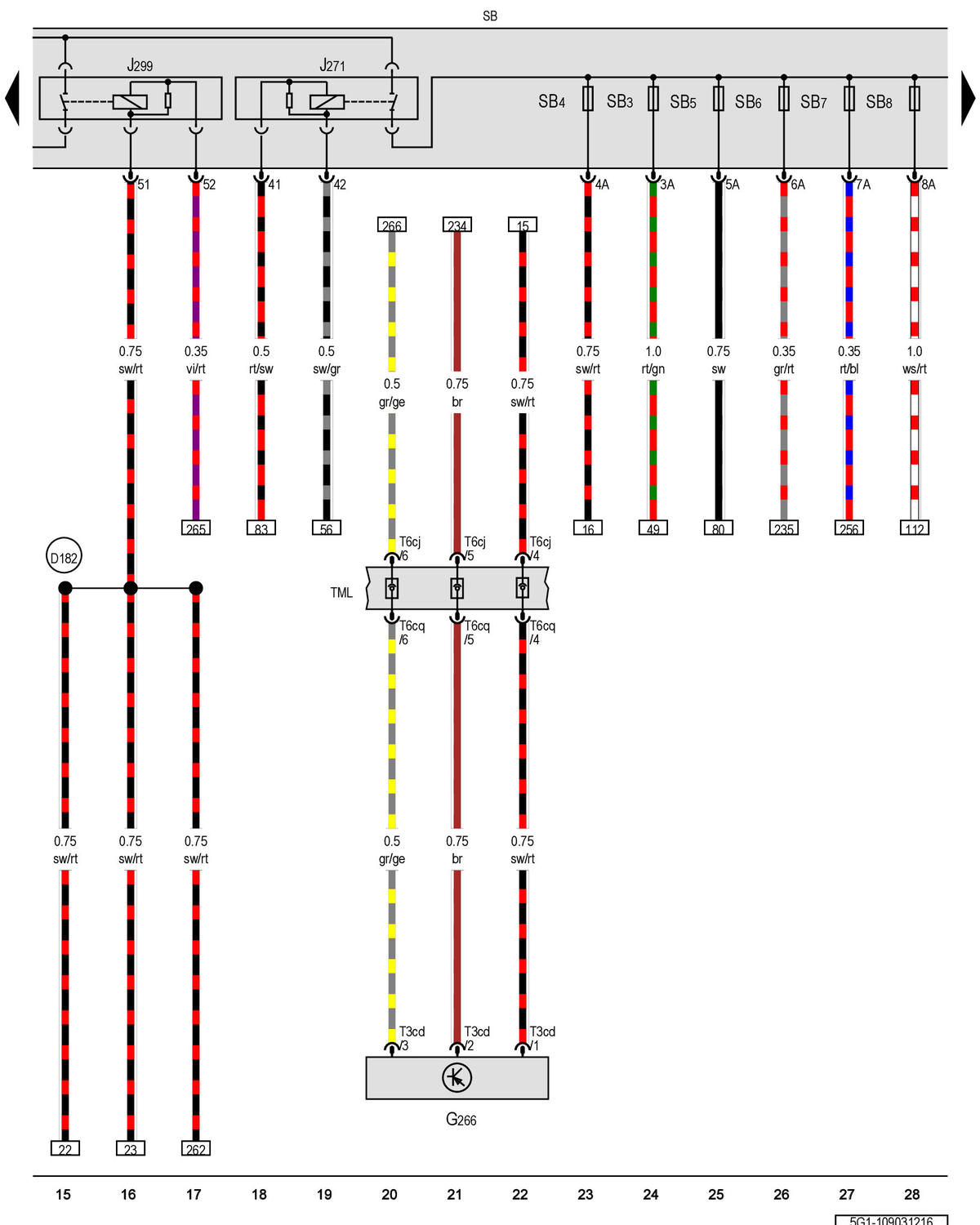

Wiring Diagram [CYFB] (2 Of 3) -- Golf R
>>
Wiring Diagram(S)
>>
Oil Level Thermal Sensor, MOTRONIC Engine Control Module Power Supply Relay, Secondary Air Injection Pump Relay, Fuse Panel B
>>
Notes
Oil Level Thermal Sensor, MOTRONIC Engine Control Module Power Supply Relay, Secondary Air Injection Pump Relay, Fuse Panel B: Notes
