Home >> Volkswagen >> 2017 >> Golf R Standard Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Wiring Diagram [CYFB] (2 Of 3) -- Golf R >> Wiring Diagram(S) >> Manifold Absolute Pressure Sensor, Engine Control Module, EVAP Canister Purge Regulator Valve 1, Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 1, Heater Support Pump >> Notes

Manifold Absolute Pressure Sensor, Engine Control Module, EVAP Canister Purge Regulator Valve 1, Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 1, Heater Support Pump: Notes

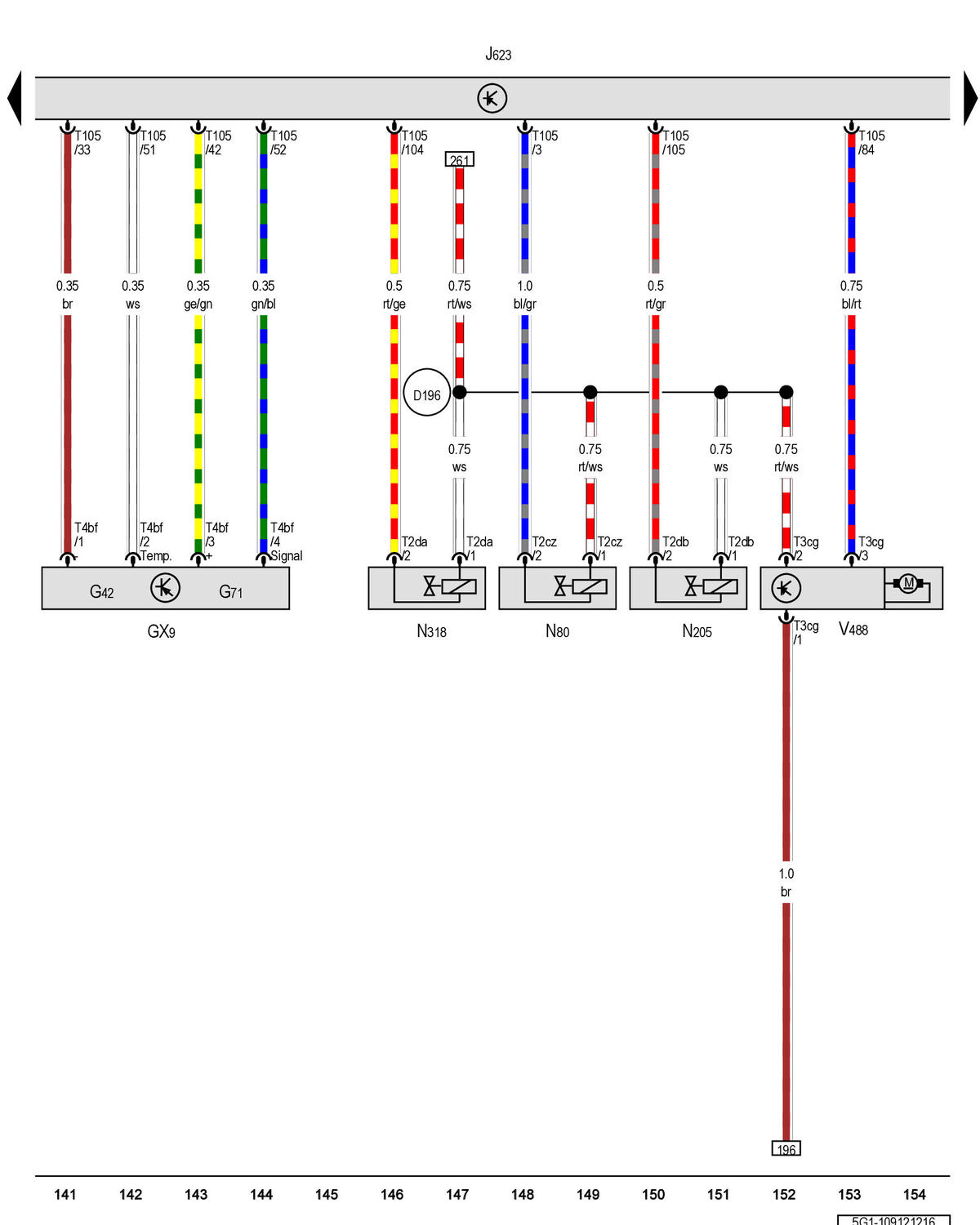

GWW5G1-109121216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
