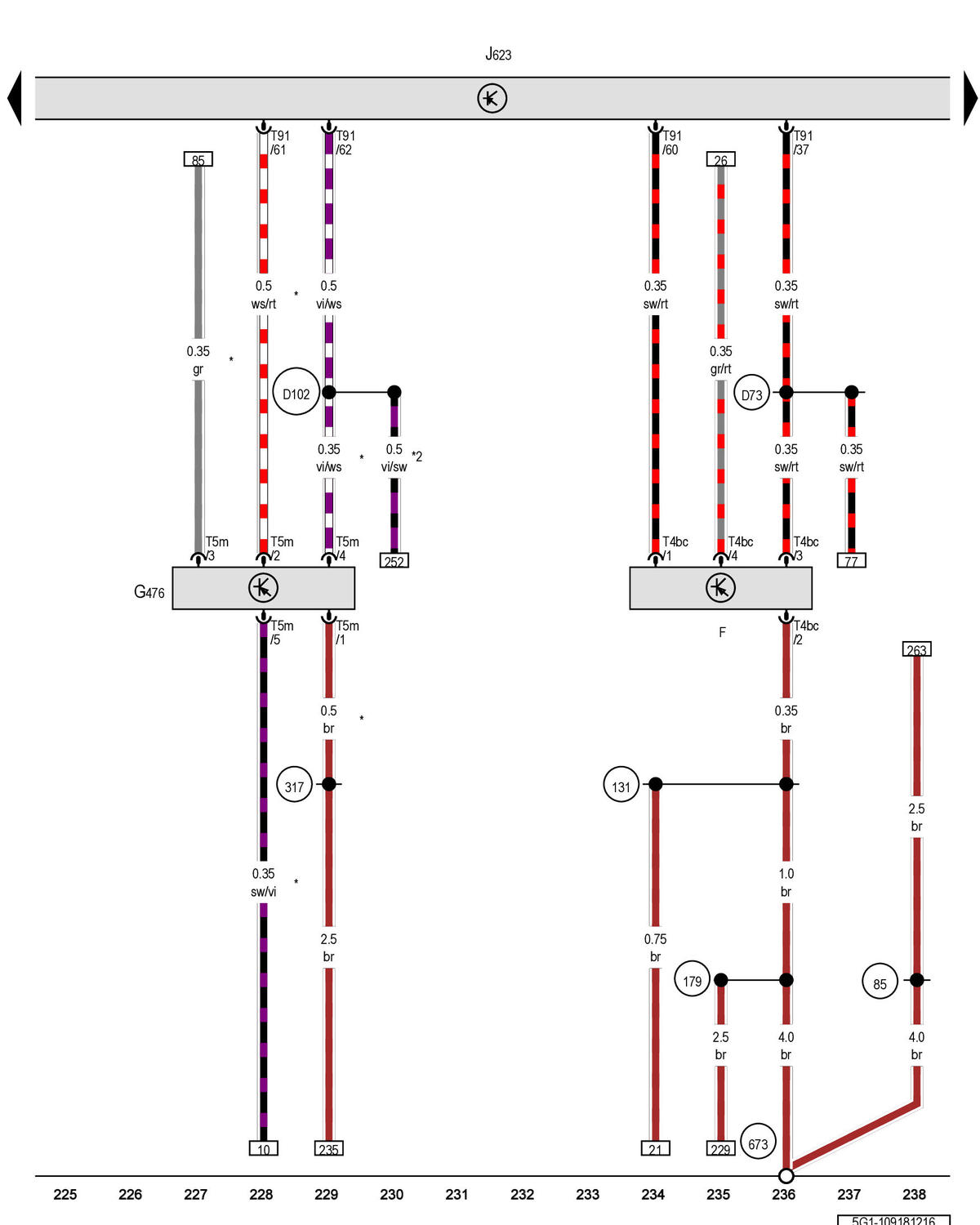

Brake Lamp Switch, Clutch Position Sensor, Engine Control Module: Notes

GWW5G1-109181216

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
