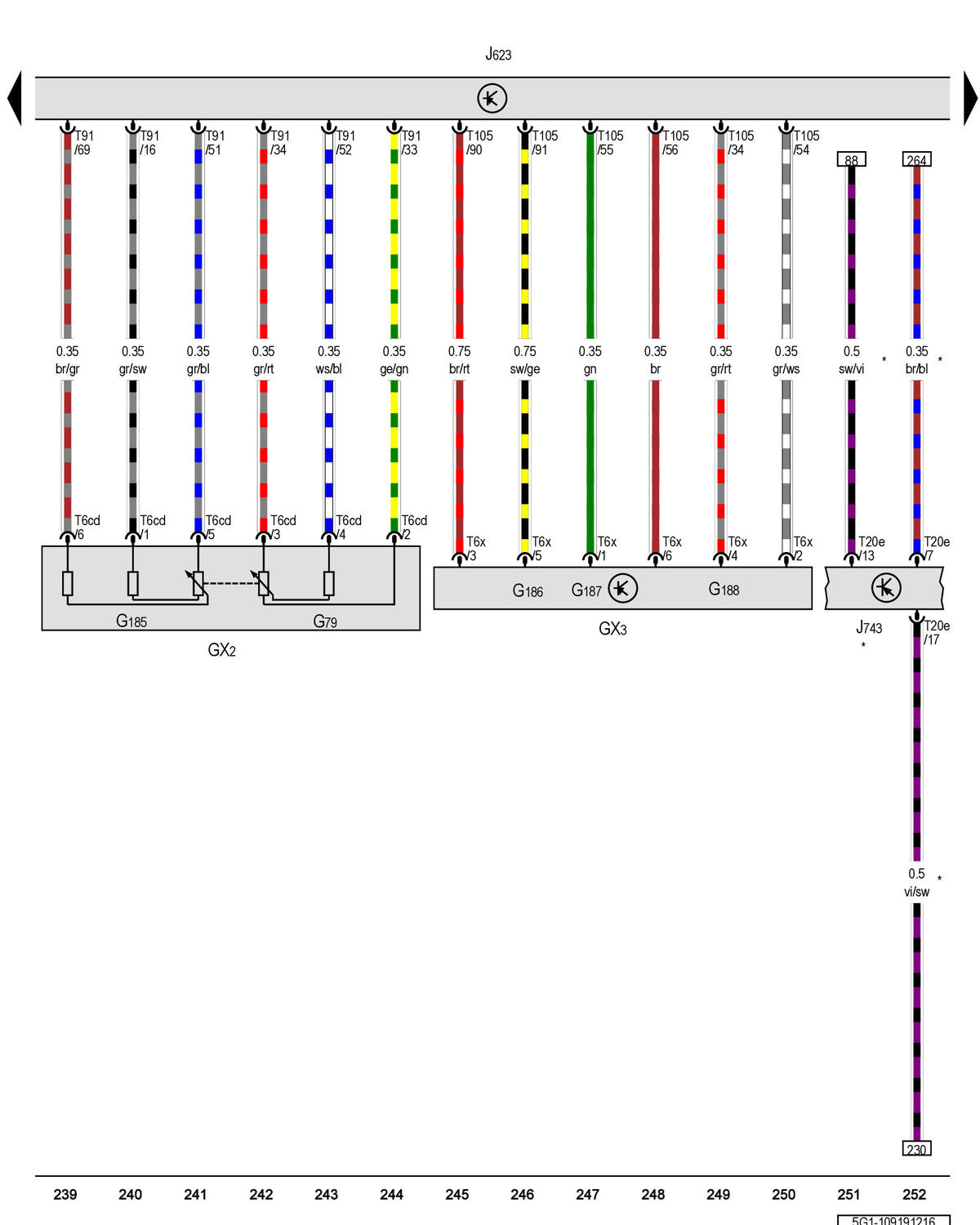

Accelerator Pedal Module, Throttle Valve Control Module, Engine Control Module, Dual-Clutch Transmission MECHATRONIC: Notes

GWW5G1-109191216

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
