Wiring Diagram (Exterior Headlamps / Lamps) -- Golf R
>>
Wiring Diagram
>>

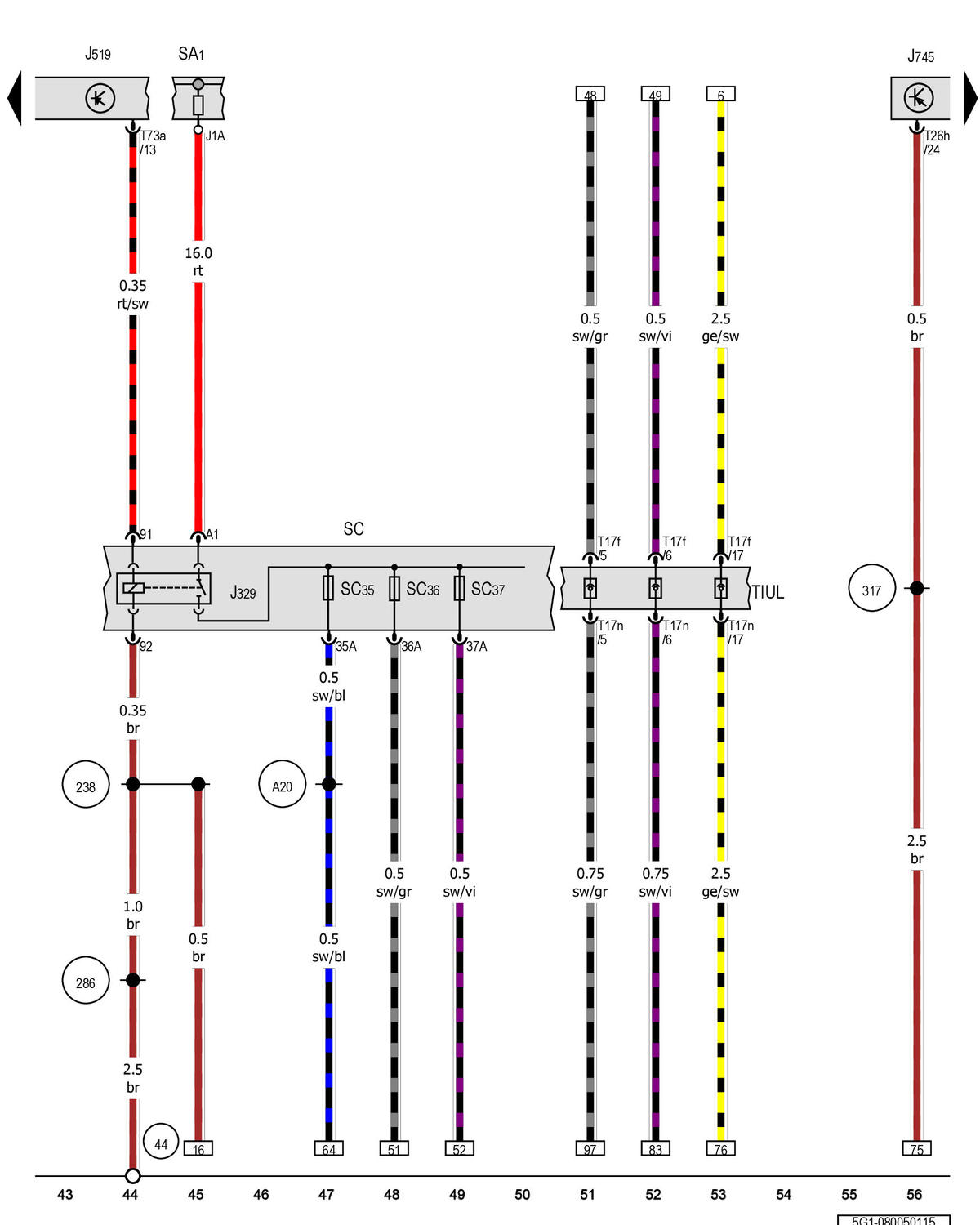

Terminal 15 Power Supply Relay, Vehicle Electrical Control Module System, Cornering Lamp And Headlamp Range Control Module, Fuse Panel C
>>
Notes
Terminal 15 Power Supply Relay, Vehicle Electrical Control Module System, Cornering Lamp And Headlamp Range Control Module, Fuse Panel C: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
