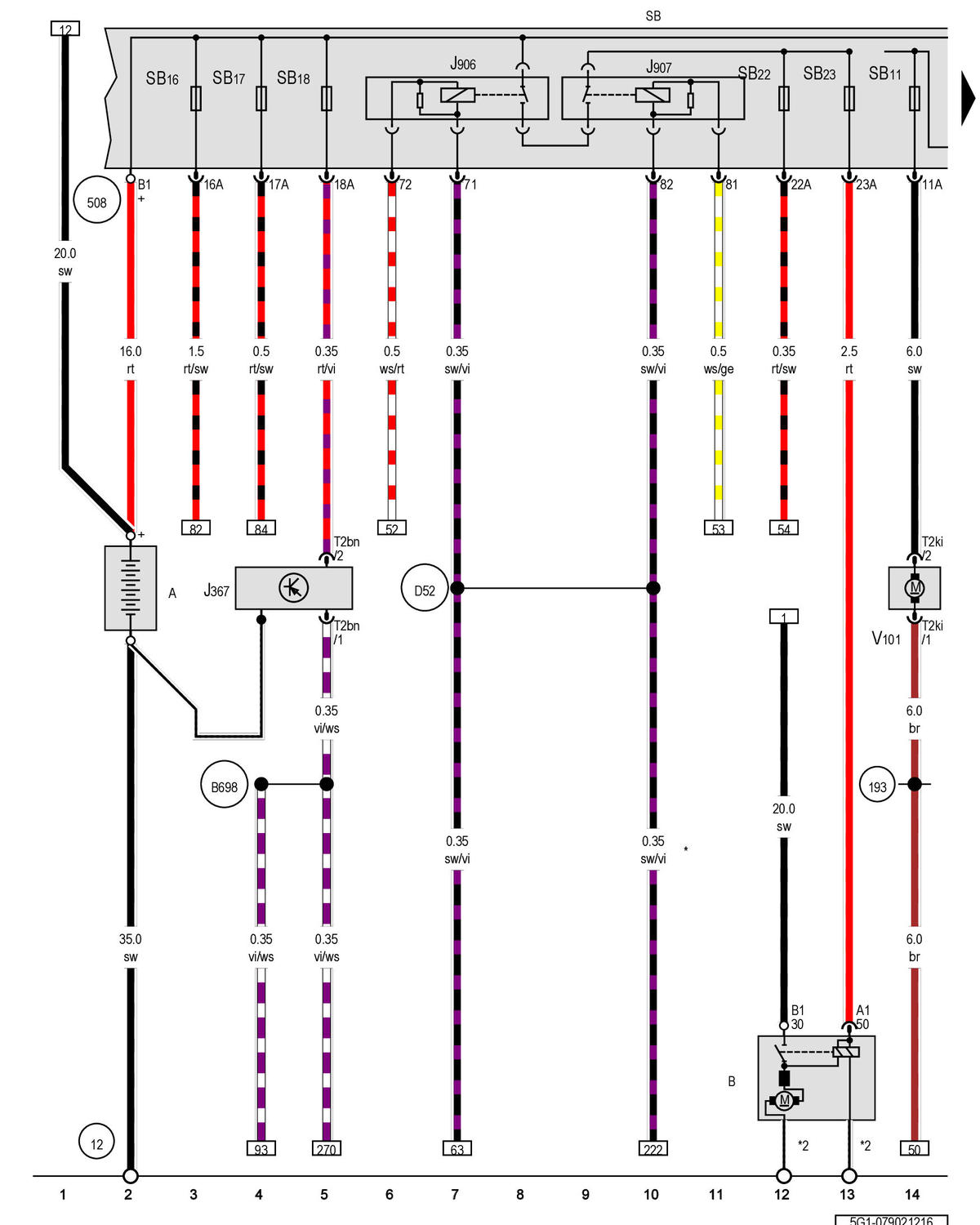

Starter, Battery Monitoring Control Module, Starter Relay 1, Starter Relay 2, Fuse Panel B: Notes

GWW5G1-079021216

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
