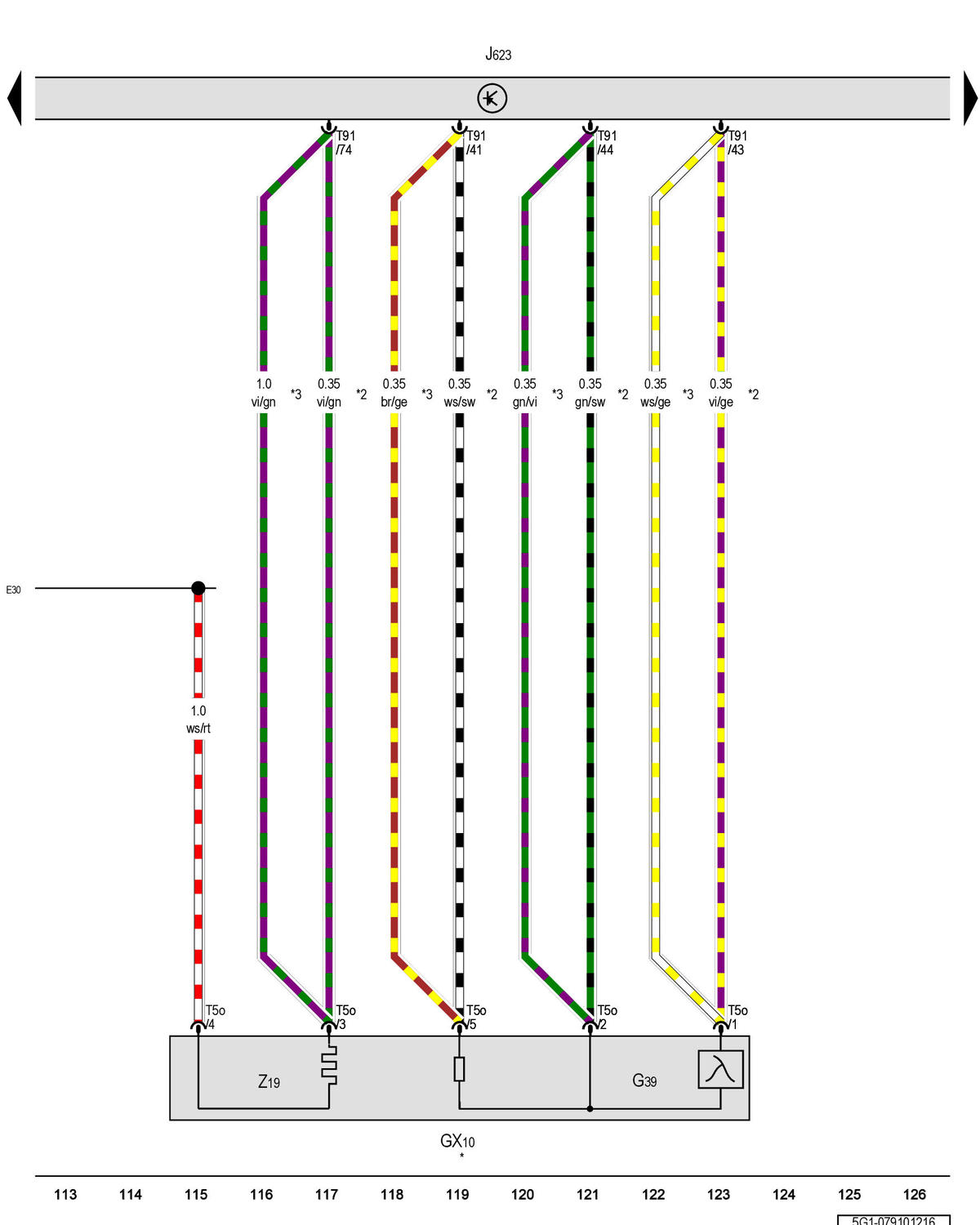

Oxygen Sensor 1 Before Catalytic Converter, Engine Control Module: Notes

GWW5G1-079101216

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
