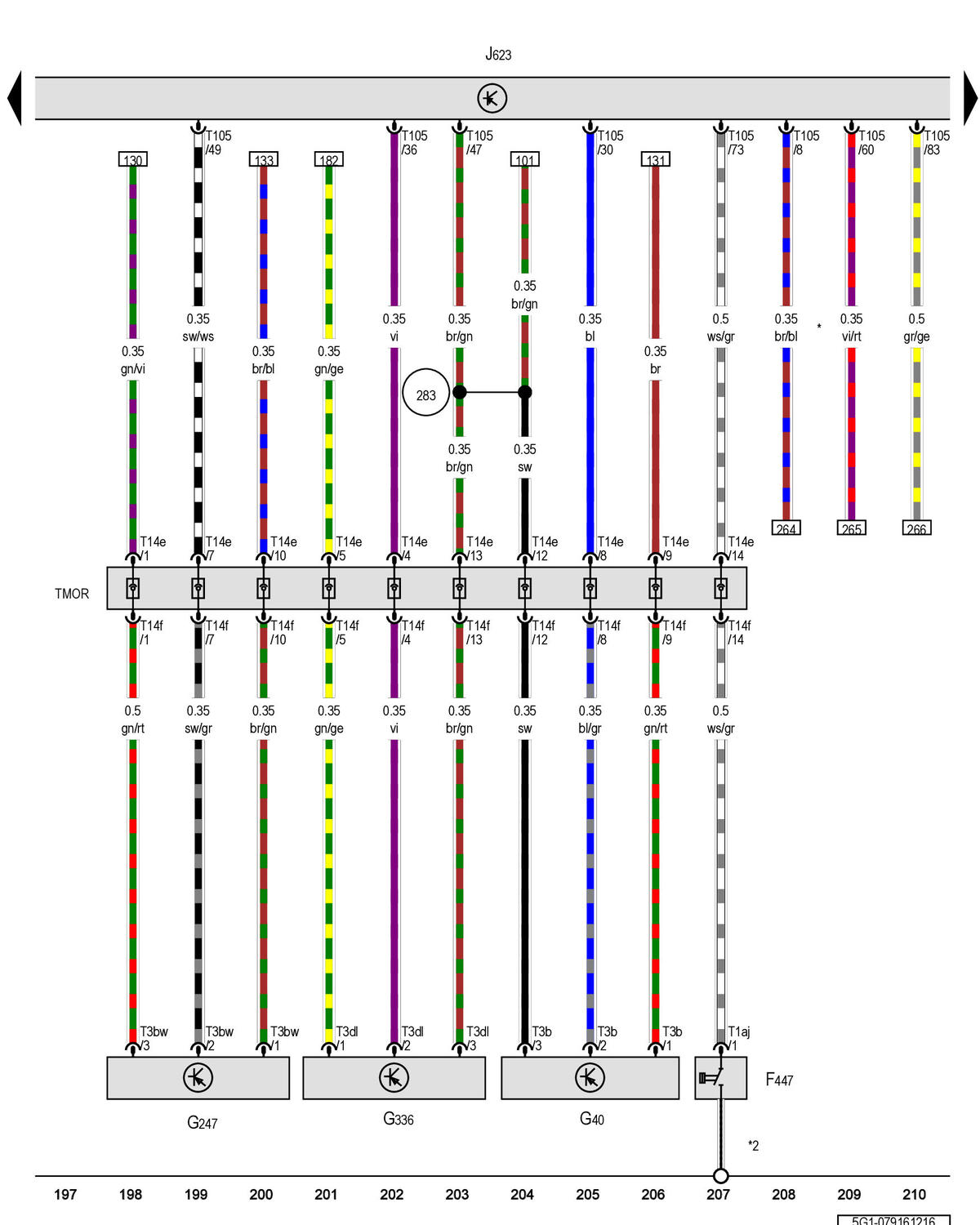

Wiring Diagram (2.0L Gasoline Engine) [CYFB] (1 Of 3) -- Golf R
>>
Wiring Diagram(S)
>>
Oil Pressure Switch, Level 3, Camshaft Position Sensor, Fuel Pressure Sensor, Intake Manifold Runner Position Sensor, Engine Control Module
>>
Notes
Oil Pressure Switch, Level 3, Camshaft Position Sensor, Fuel Pressure Sensor, Intake Manifold Runner Position Sensor, Engine Control Module: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
