Golf R Standard Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>

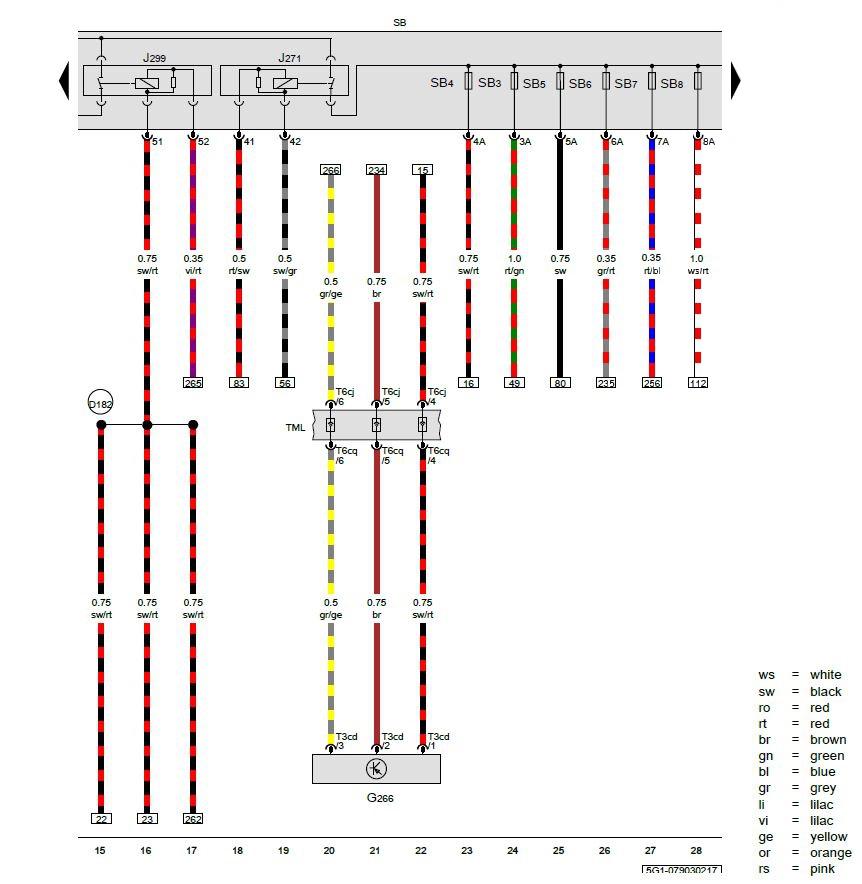

Wiring Diagram (2.0L Gasoline Engine) [CYFB] (1 Of 3) -- Golf R
>>
Wiring Diagram(S)
>>
Oil Level Thermal Sensor, MOTRONIC Engine Control Module Power Supply Relay, Secondary Air Injection Pump Relay, Fuse Panel B
>>
Notes
Oil Level Thermal Sensor, MOTRONIC Engine Control Module Power Supply Relay, Secondary Air Injection Pump Relay, Fuse Panel B: Notes
