Manifold Absolute Pressure Sensor, Secondary Air Injection Sensor 1, Engine Control Module, EVAP Canister Purge Regulator Valve 1, Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 1, Heater Support Pump: Notes

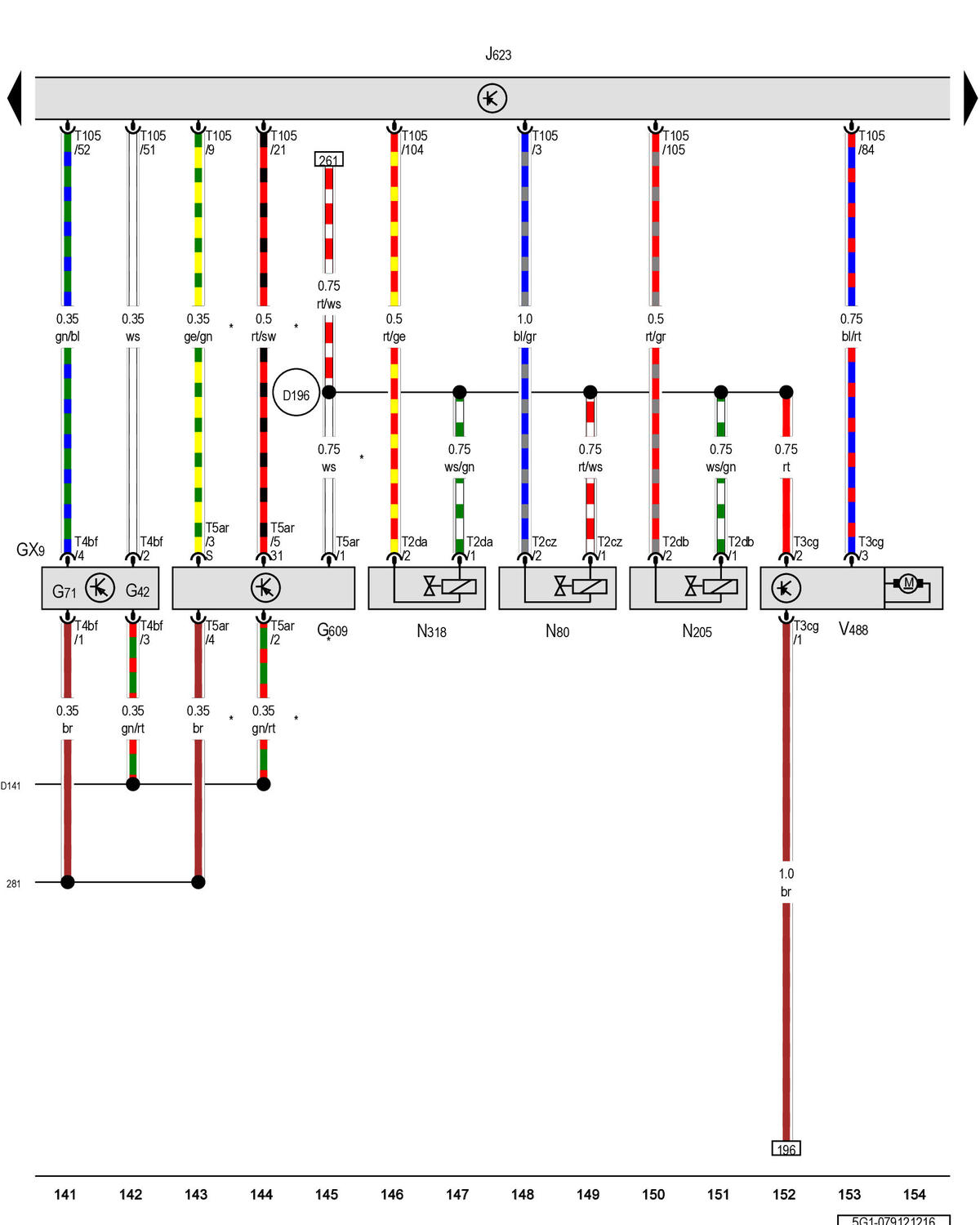

GWW5G1-079121216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
