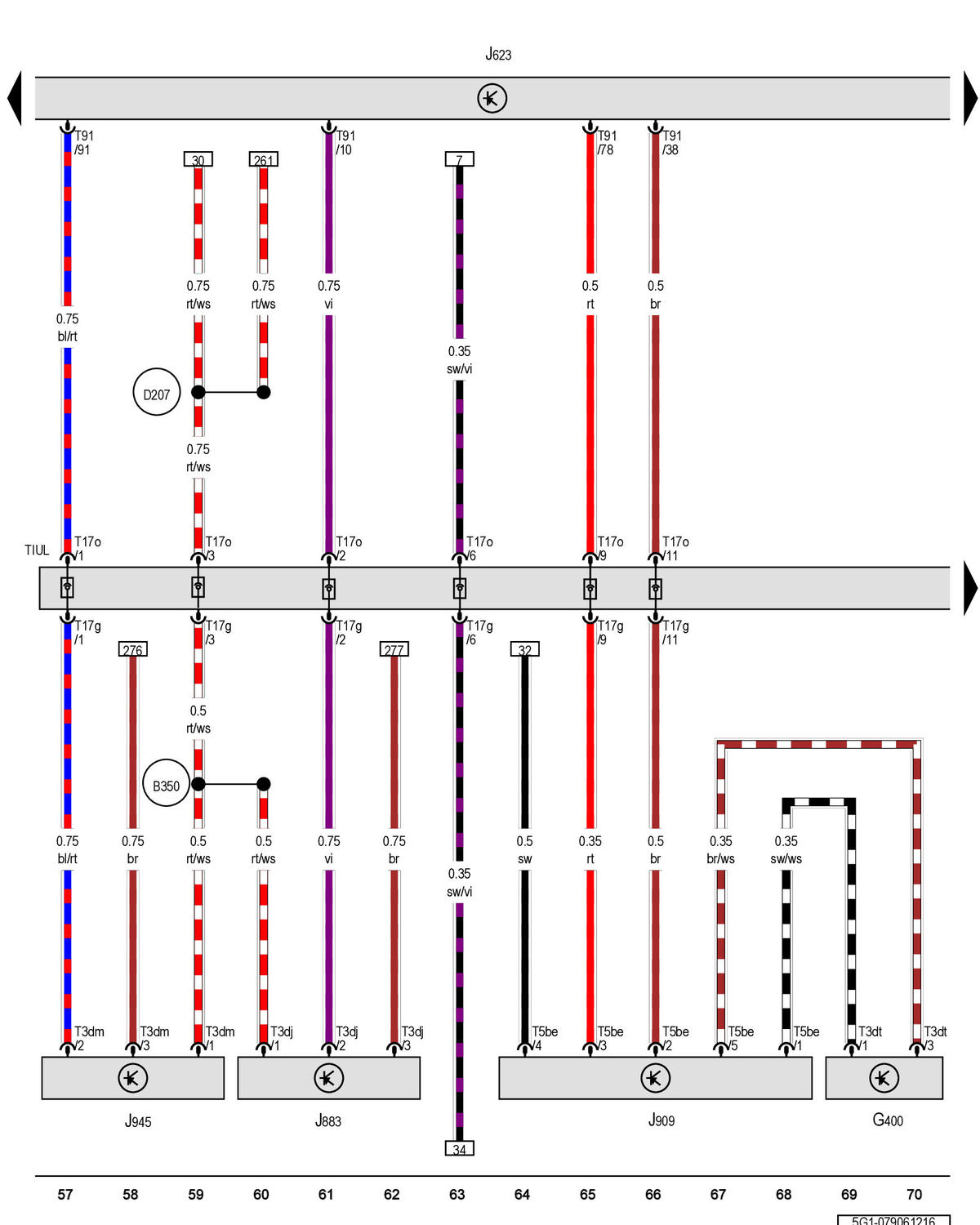

Engine Control Module, Exhaust Door Control Unit, Exhaust Door Control Unit 2: Notes

GWW5G1-079061216

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
