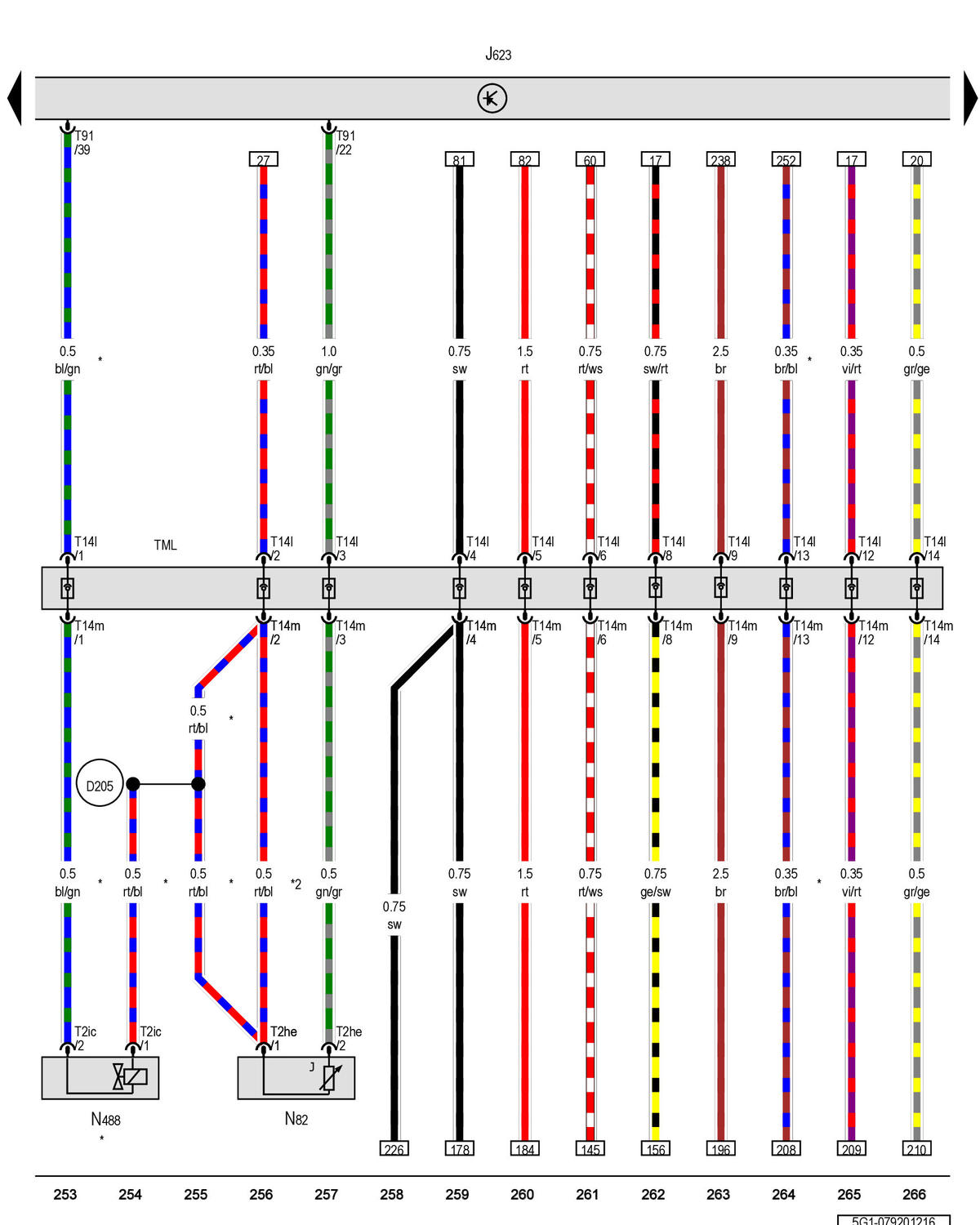

Engine Control Module, Coolant Shut-Off Valve, Transmission Coolant Valve: Notes

GWW5G1-079201216

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
