Golf R Standard Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>

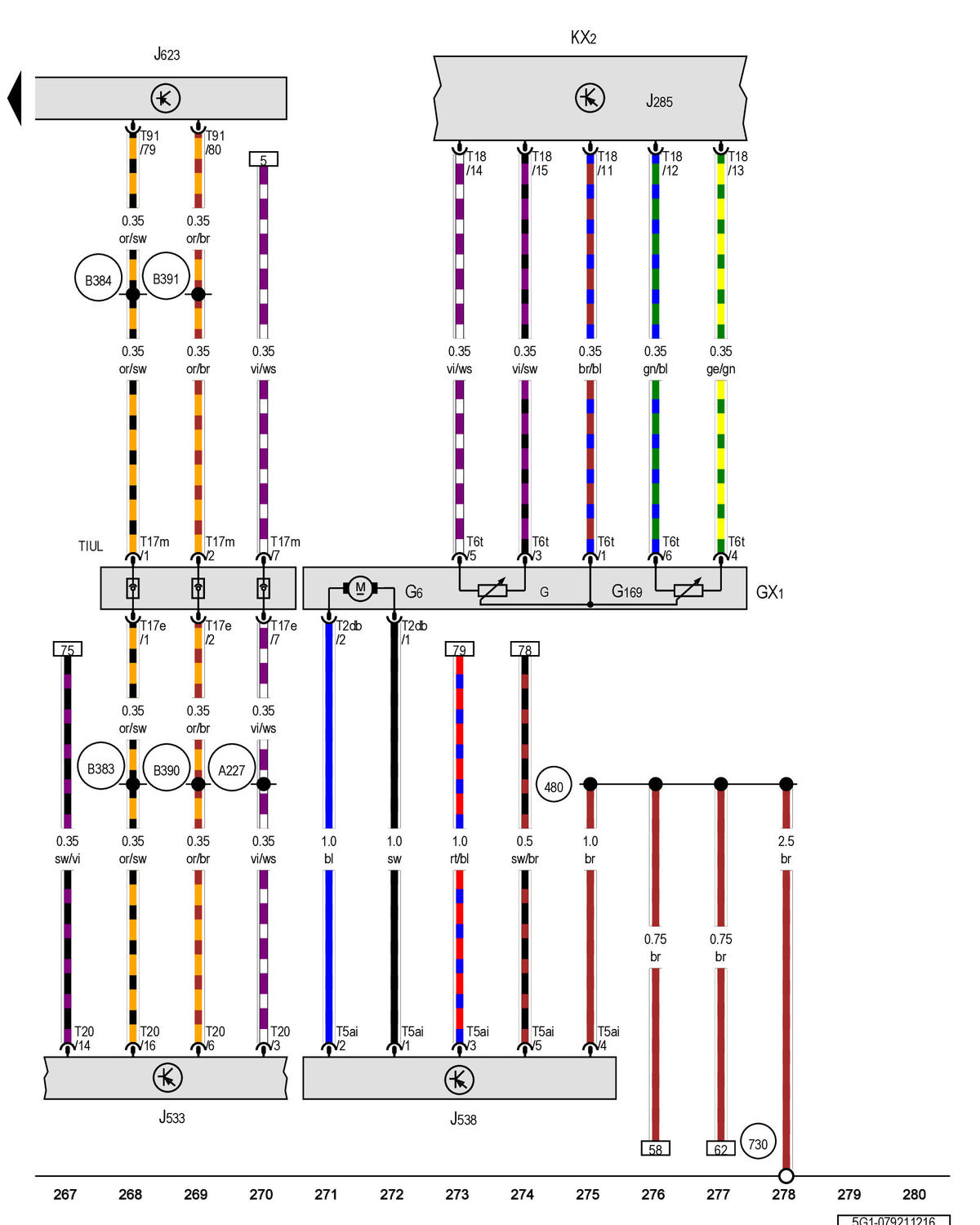

Wiring Diagram (2.0L Gasoline Engine) [CYFB] (1 Of 3) -- Golf R
>>
Wiring Diagram(S)
>>
Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine Control Module, Instrument Cluster
>>
Notes
Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine Control Module, Instrument Cluster: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
