Wiring Diagram (2.0L Gasoline Engine) [CYFB] (1 Of 3) -- Golf R
>>
Wiring Diagram(S)
>>

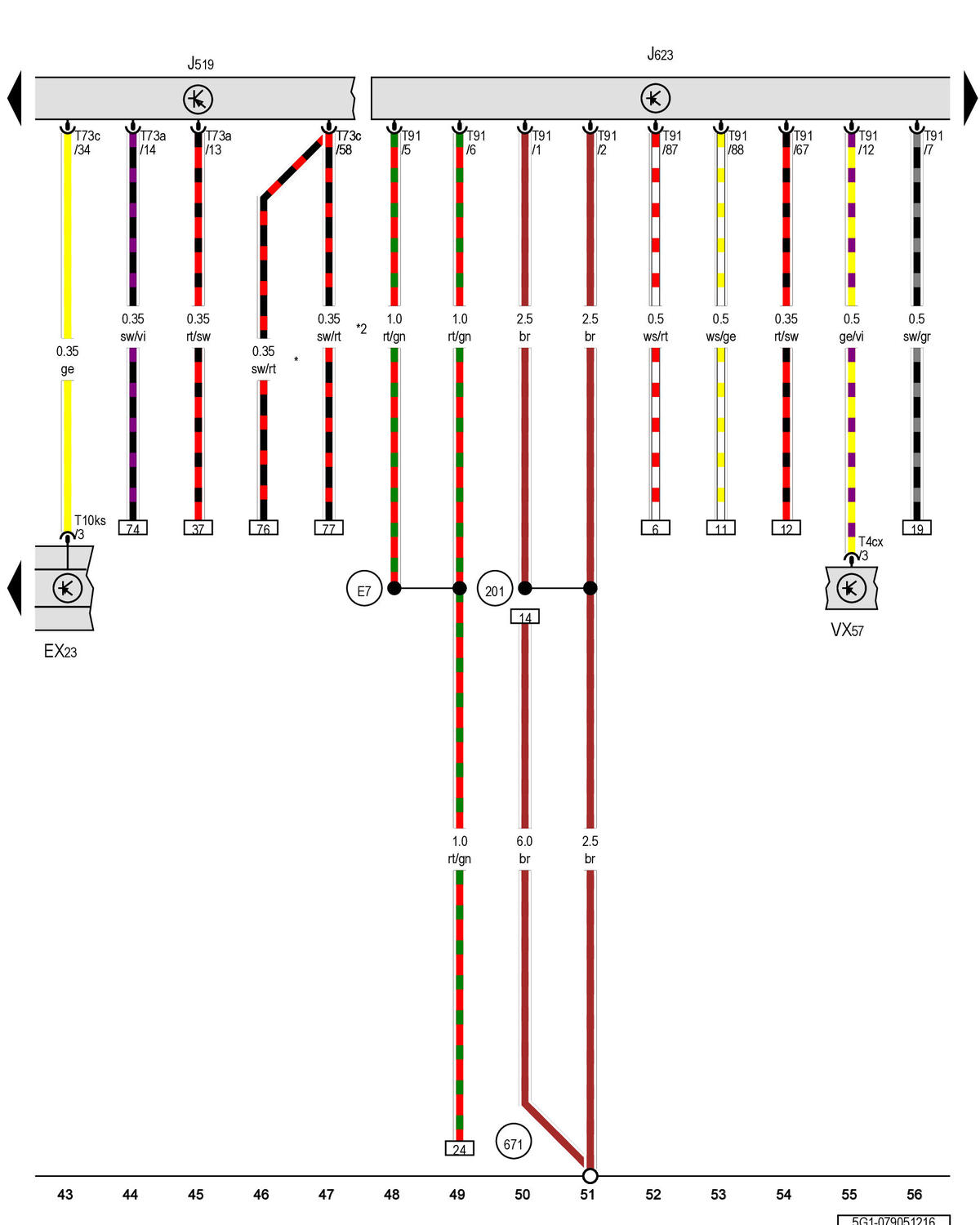

Center Console Switch Module 1, Vehicle Electrical System Control Module, Engine Control Module
>>
Notes
Center Console Switch Module 1, Vehicle Electrical System Control Module, Engine Control Module: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
