Home >> Volkswagen >> 2017 >> Golf R Standard Trans >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Wiring Diagram (2.0L Gasoline Engine) [CYFB] (1 Of 3) -- Golf R >> Wiring Diagram(S) >> Brake Lamp Switch, Engine Control Module, Cylinder 1 Fuel Injector 2, Cylinder 2 Fuel Injector 2, Cylinder 3 Fuel Injector 2, Cylinder 4 Fuel Injector 2 >> Notes

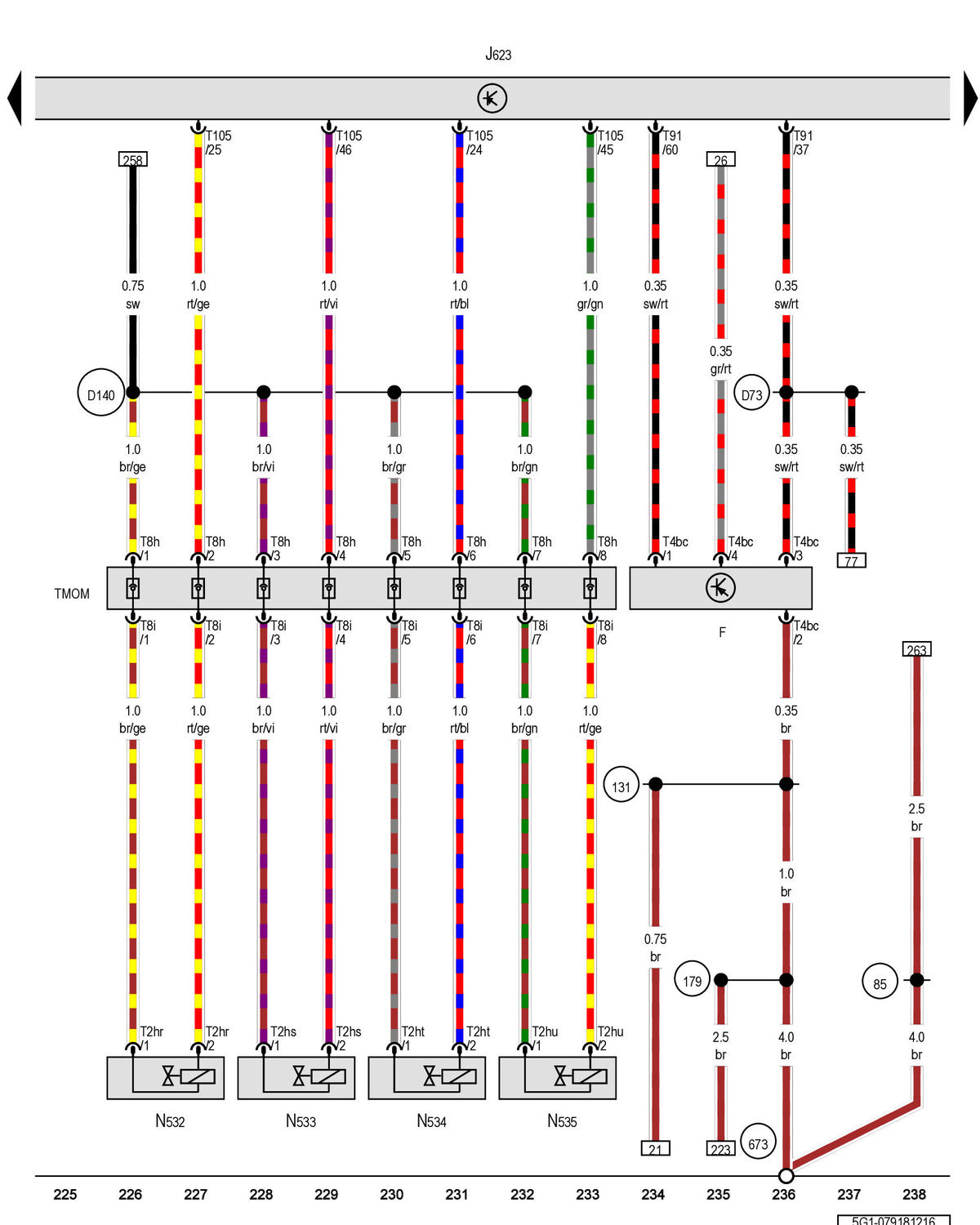

Brake Lamp Switch, Engine Control Module, Cylinder 1 Fuel Injector 2, Cylinder 2 Fuel Injector 2, Cylinder 3 Fuel Injector 2, Cylinder 4 Fuel Injector 2: Notes

GWW5G1-079181216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
