Wiring Diagram (2.0L Gasoline Engine) [CYFB] (1 Of 3) -- Golf R
>>
Wiring Diagram(S)
>>

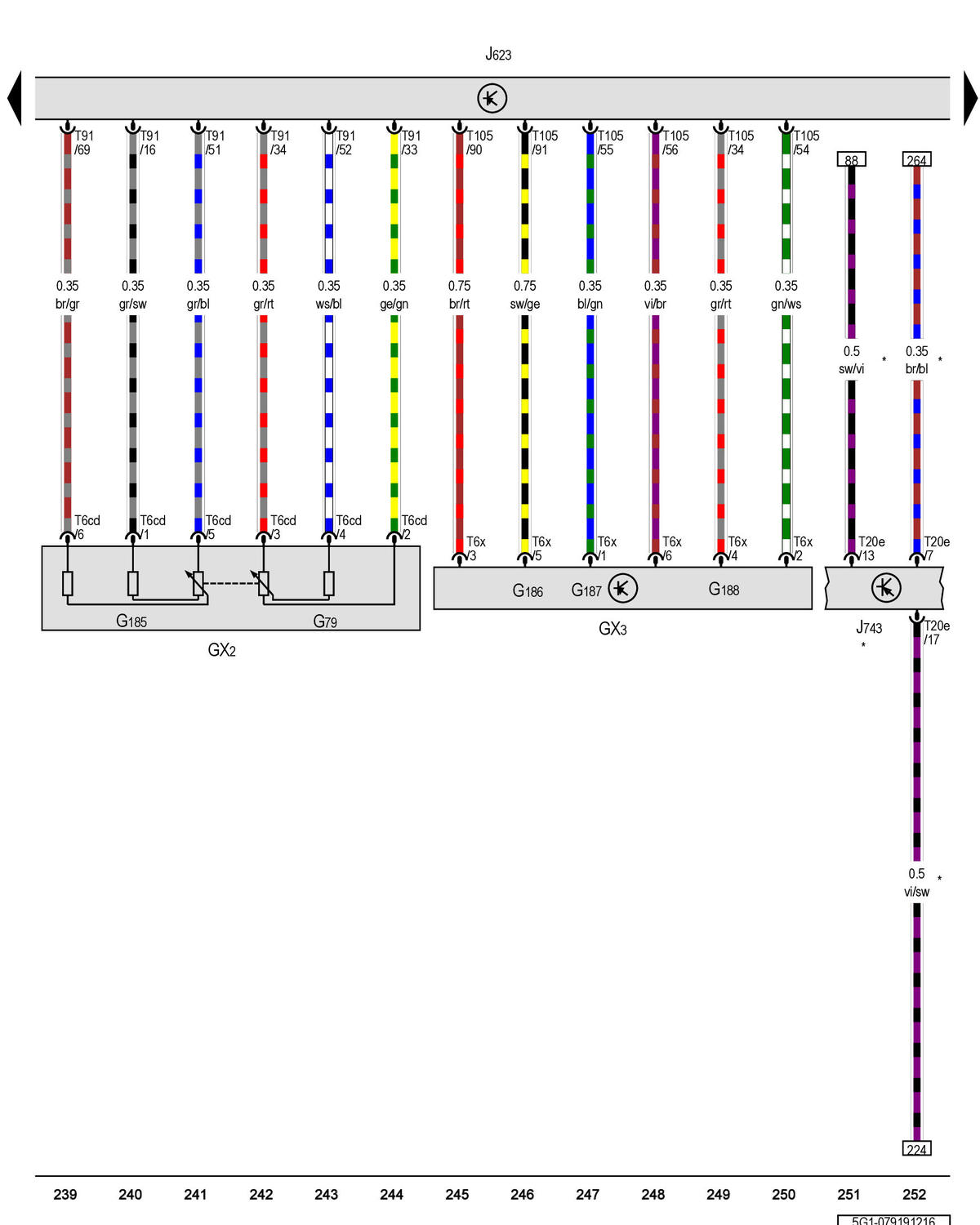

Accelerator Pedal Module, Throttle Valve Control Module, Engine Control Module, Dual-Clutch Transmission MECHATRONIC
>>
Notes
Accelerator Pedal Module, Throttle Valve Control Module, Engine Control Module, Dual-Clutch Transmission MECHATRONIC: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
