Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Refractometer:T10007A
• Shop Crane - Drip Tray:VAS6208
• Hose Clip Pliers:VAS6340
• Cooling System Charge Kit:VAS6096
• Cooling System Tester - Adapter:VAG1274/8

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Cooling System Tester - Adapter:VAG1274/8
• Cooling System Tester - Adapter:VAG1274/9
• Cooling System Tester:VAG1274B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

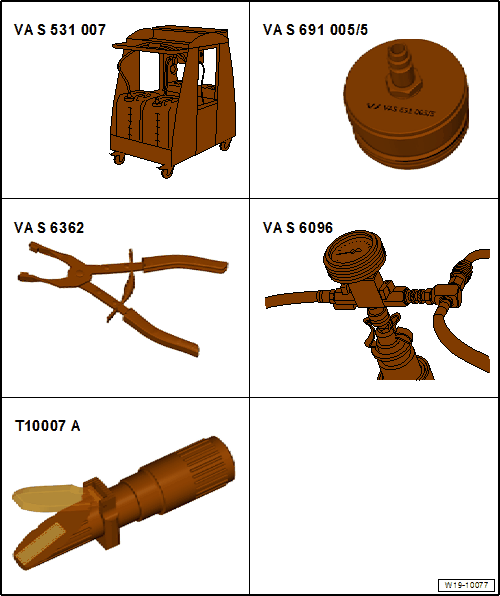

Special Tools And Workshop Equipment Required

• Coolant Flushing and Filling Device:VAS531007
• Cooling System Tester - Directional Valve:VAS691005/5
• Hose Clip Pliers:VAS6362
• Suction jet pump from the Cooling System Charge Kit:VAS6096
• Shop Crane - Drip Tray:VAS6208
• Refractometer:T10007A
• Compressed air connector with 6 to 10 bar pressure

Special Tools And Workshop Equipment Required

• Torque Wrench 1331 Insert - Ring Wrench - 12mm:T10360
  Fig 1: Identifying Ring Wrench

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Elbow Assembly Tool:T10118
  Fig 2: Elbow Assembly Tool T10118

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clip Pliers:VAS6340
  Fig 3: Hose Clip Pliers VAS6340

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clip Pliers:VAS6362
  Fig 4: Hose Clip Pliers

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clamps - Up To 25 mm:3094
  Fig 5: Hose Clamps

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
