Overview - Auxiliary Cooler

NOTE:

The auxiliary cooler is installed in the right front on vehicles with a manual transmission.

Vehicles with a DSG transmission have two auxiliary coolers at the front right and front left.

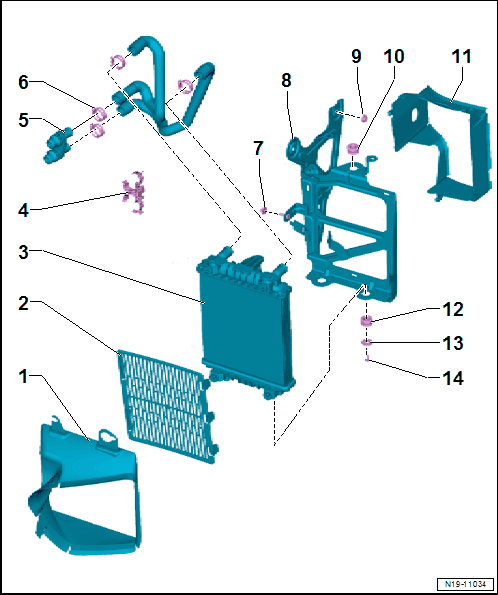

Fig 1: Exploded View Of Auxiliary Cooler
GWWN19-11034Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Air Duct
  2. Protective Grille
  3. Auxiliary Cooler
  4. Hose Bracket
  5. Connecting Piece
  6. Hose Clamps
  7. Nut
    • 9 Nm
  8. Bracket
    • For auxiliary cooler
  9. Nut
    • 9 Nm
  10. Rubber Grommet
    • For auxiliary cooler
  11. Air Duct
  12. Rubber Grommet
    • For auxiliary cooler
  13. Backing Plate
  14. Bolt
    • 3.5 Nm
