Fan Shroud, Removing And Installing: Removing

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

WARNING:

There is a risk of injury if the radiator fan turns on by itself.

Disconnect the connectors before working near the fan shroud.

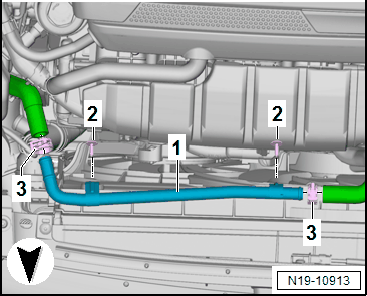

-- Remove the coolant pipe -1- from the fan shroud by removing the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Loosen the hose clamps -arrows- and remove the left charge air hose -A-.

Fig 1: Removing Change Air Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the radiator fan connector -1-. To do so, slide the retainer in the direction of the -arrow A- and push the release downward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the left and right fan shroud locking tabs evenly in direction of -arrow B-. Pull the fan shroud upward from the radiator and remove downward.
