Auxiliary Cooler, Removing And Installing: Removing

-- Remove the wheel. Refer to WHEEL BOLTS TIGHTENING SPECIFICATION / WHEEL, CHANGING .

-- Remove the front section of the wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER / FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

RIGHT AUXILIARY COOLER

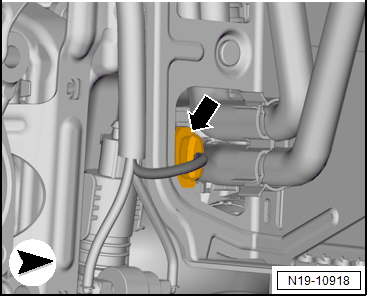

-- Disconnect the connector -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation For All Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the air guide -1- while doing so remove in the direction of -arrow-.

LEFT AUXILIARY COOLER

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clamp off the coolant hoses with :3094  .

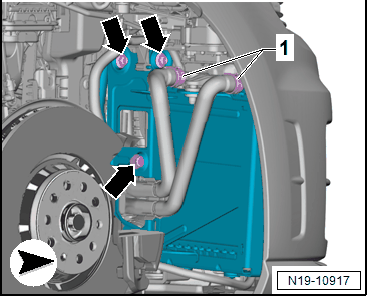

-- Loosen the hose clamps -1-, while doing so remove the coolant hoses.

-- Free up the coolant hoses from the bracket, to do so open the retainers in direction of -A arrows- and remove in direction of -B arrows-.

-- Remove the nuts -arrows-.

-- Remove the auxiliary cooler -1- together with the bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

RIGHT AUXILIARY COOLER

-- Clamp off the coolant hoses with :3094  .

-- Loosen the hose clamps -1-, while doing so remove the coolant hoses.

-- Remove the nuts -arrows-.

-- Remove the auxiliary cooler together with the bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation For All Vehicles

-- Remove the air guide -1- in the direction of -arrow-.

-- Remove the bolts -4-.

-- Remove the auxiliary cooler -2- from the bracket -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
