Coolant, Draining And Filling: Draining

WARNING:

The coolant system is under pressure when the engine is warm.

Risk of scalding due to hot steam and hot coolant.

Reduce pressure by covering the coolant reservoir cap with a cloth and carefully opening.

-- Open the coolant reservoir cap -arrow-.

Fig 1: Identifying Coolant Reservoir Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Place the :VAS6208 underneath.

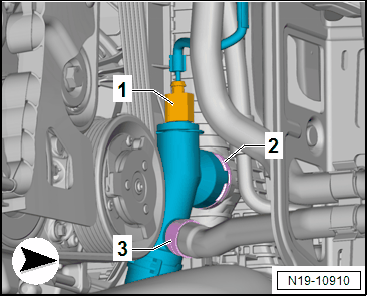

-- Lift up the clamp -2-, remove the connection and let the coolant drain.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles With DSG Transmission:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Also release the clamps -1 and 2-. Disconnect the coolant hoses to the coolant auxiliary cooler on the left and let the coolant drain.

Continuation for All:
