Coolant Pipe On Front Engine, Removing And Installing: Removing

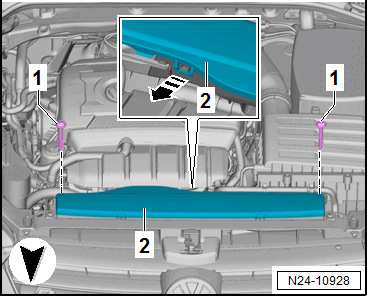

-- Remove the bolts -1-.

-- Open the catch in direction of -arrow- and remove the cover -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

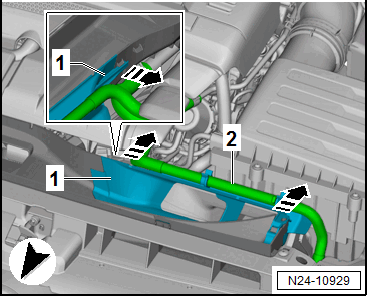

-- Free up the coolant hose -2-.

-- Release the retainers in direction of -arrows- and remove the air guide upper section -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip and remove the lower section -1- of the air duct.

NOTE:

Place a cleaning cloth underneath, to catch coolant leaking out.

Fig 1: Identifying Coolant Hose Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the coolant hoses -1 and 2- with :3094  .

-- Loosen the clamps and remove the coolant hoses.

-- Remove the bolts -arrows- and the front coolant pipe.
