Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

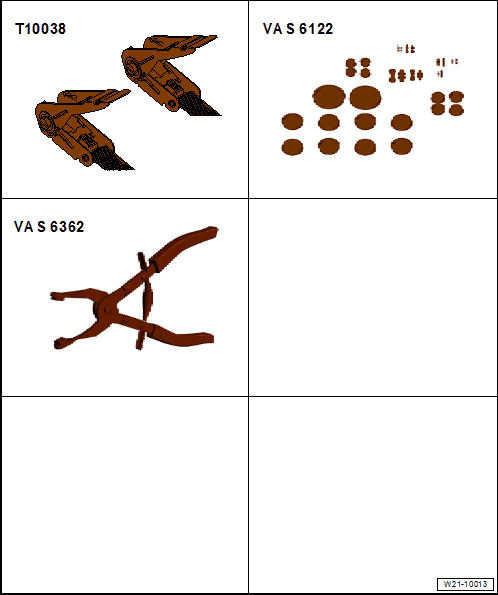

Special Tools And Workshop Equipment Required

• Tensioning Strap:T10038
• Engine Bung Set:VAS6122
• Hose Clip Pliers:VAS6362

Special Tools And Workshop Equipment Required

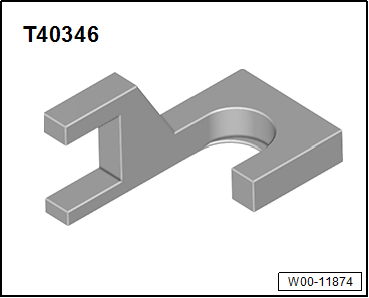

• Setting Gauge:T40346

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Turbo System Tester Kit:VAG1687
  Fig 1: Identifying Turbo System Tester Kit

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench 1783 - Open Jaw - 10mm:VAG1783/1
  Fig 2: Identifying V.A.G 1783/1

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Mini Torque Wrench:VAS6854
  Fig 3: Identifying Mini Torque Wrench VAS 6854

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Not illustrated:
• Ultrasonic Measuring Device:VAG1842
