Overview - Roof Trim Panel Lamps

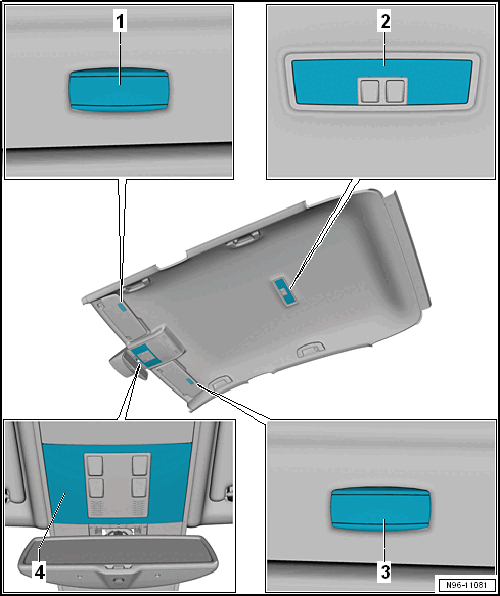

Fig 1: Exploded View Of Roof Trim Panel Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Driver Vanity Mirror Lamp -W20-
- For the vanity mirror illumination with LED the lamp must be replaced is faulty.
- Removing and installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
Rear Interior Lamp -WX2-
- With Left Rear Reading Lamp -W11- /Right Rear Reading Lamp -W12-
- Removing and installing. Refer to REAR INTERIOR/READING LAMP, REMOVING AND INSTALLING .
- Rear Interior Lamp -W43- bulb removing and installing. Refer to Rear Interior Lamp -W43- BULB REMOVING AND INSTALLING .
- Left Rear Reading Lamp -W11- /Right Rear Reading Lamp -W12- bulb removing and installing. Refer to Rear Interior Lamp -W43- BULB REMOVING AND INSTALLING .
Front Passenger Vanity Mirror Lamp -W14-
- For the vanity mirror illumination with LED the lamp must be replaced is faulty.
- Removing and installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
Front Interior Lamp -WX1-
- With Driver Reading Lamp -W19- and Front Passenger Reading Lamp -W13-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Front Interior Lamp -WX1- bulb removing and installing. Refer to Front Interior Lamp -W1- BULB, REMOVING AND INSTALLING .
- Front Passenger Reading Lamp -W13- bulb removing and installing. Refer to Front Interior Lamp -W1- BULB, REMOVING AND INSTALLING .
- For a Front Interior Lamp -WX1- the lamp must be replaced if there is a faulty LED
