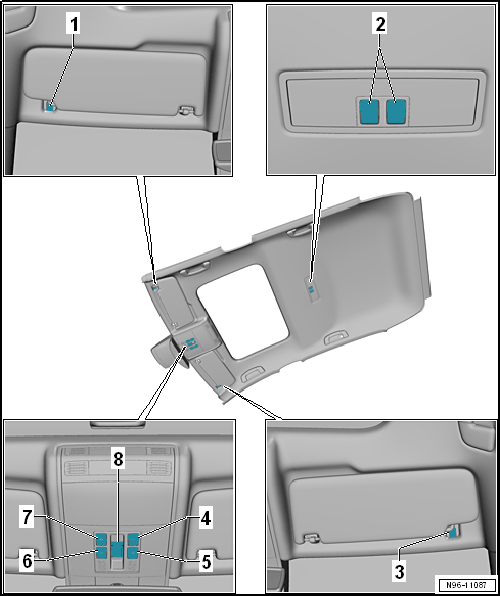

Overview - Roof Trim Panel Controls
- Driver Vanity Mirror Lamp Contact Switch -F147-
- The vanity mirror contact switch is located in the sun visor mount and cannot be replaced separately if faulty.
- Removing and installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP CONTACT SWITCH -F147- / -F148-, REMOVING AND INSTALLING .
- Rear Interior Lamp -W43- Button
- Installed in the Rear Interior Lamp -WX2-
- Removing and installing. Refer to REAR INTERIOR/READING LAMP, REMOVING AND INSTALLING .
- Front Passenger Vanity Mirror Lamp Contact Switch -F148-
- The vanity mirror contact switch is located in the sun visor mount and cannot be replaced separately if faulty.
- Removing and installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP CONTACT SWITCH -F147- / -F148-, REMOVING AND INSTALLING .
- Rear Interior Lamp -W43- Button
- Installed in the Front Interior Lamp -WX1-
- Removing and installing. Refer to REAR INTERIOR/READING LAMP, REMOVING AND INSTALLING .
- Right Front Reading Lamp Button -E634-
- Installed in the Front Interior Lamp -WX1-
- Removing and installing. Refer to Right Front Reading Lamp Button -E634-, REMOVING AND INSTALLING .
- Front Interior Lamp -W1- Button
- To turn on and off the Front Interior Lamp -W1-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Front Interior Lamp -W1- Button
- To turn on and off the Front Interior Lamp -W1- with the door contact switch
- Installed in the Front Interior Lamp -WX1-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Sunroof Button -E325-
- Tightening Specification for screws: 0.65 Nm.
- Installed in the Front Interior Lamp -WX1-
- Removing and installing. Refer to Sunroof Button -E325-, REMOVING AND INSTALLING .
