Component Location Overview - Instrument Panel Controls

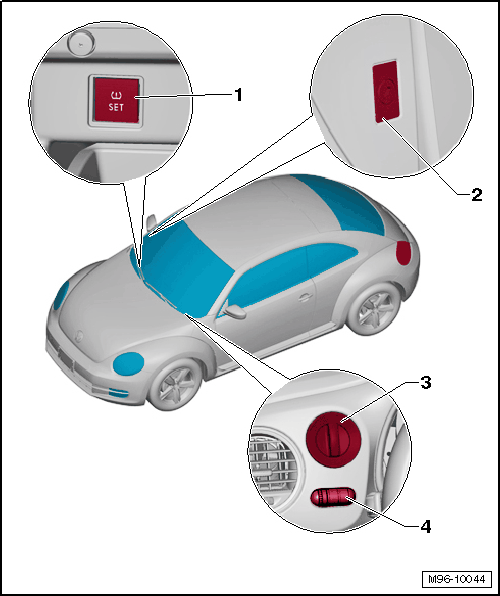

Fig 1: Identifying Instrument Panel Controls Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Tire Pressure Monitoring Display Button -E492-
   • Removing and Installing. Refer to Tire Pressure Monitoring Display Button -E492-, REMOVING AND INSTALLING .
2. Front Passenger Airbag Deactivation Key Switch -E224-
   • Removing and installing. Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING .
3. Rotary Light Switch -EX1-
   • Removing and Installing. Refer to Rotary Light Switch -EX1-, REMOVING AND INSTALLING .
4. Instrument Panel and Switch Illumination Dimmer Switch -E20-
   • Removing and Installing. Refer to Instrument Panel and Switch Illumination Dimmer Switch -E20-, REMOVING AND INSTALLING .

     - Headlamp Range Control Adjuster -E102-

   • Removing and Installing. Refer to Headlamp Range Control Adjuster -E102-, REMOVING AND INSTALLING .
