Component Location Overview - Controls In Roof Trim Panel

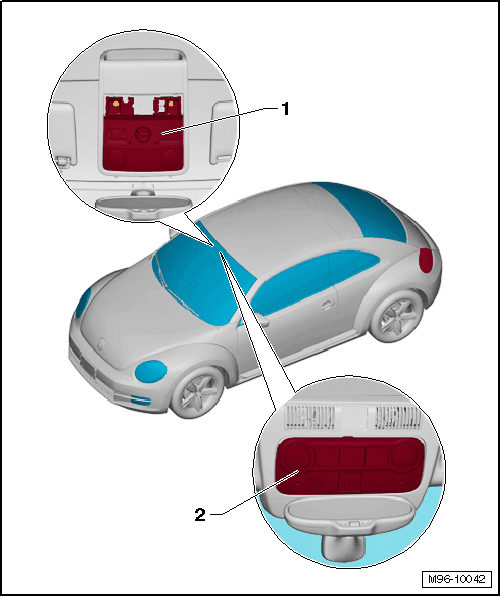

Fig 1: Identifying Roof Trim Panel Controls Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Sunroof Tilt Button 1 -E582-
   • Removing and Installing. Refer to Sunroof Tilt Button 1 -E582-, REMOVING AND INSTALLING .
2. Front Interior Lamp -W1-
   • Screws: 2 Nm
   • Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
