Component Location Overview - Controls In Center Console

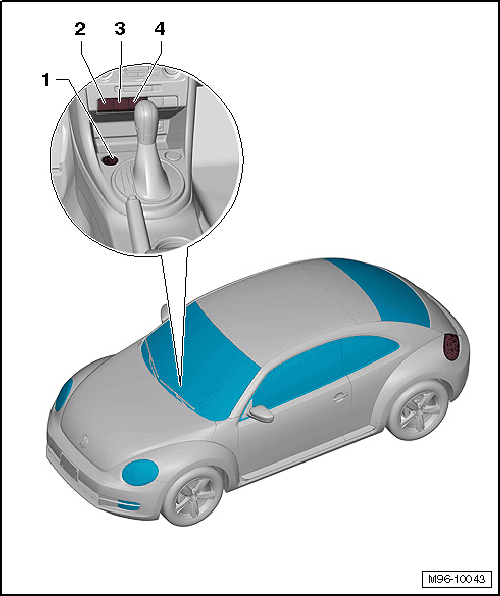

Fig 1: Identifying Center Console Controls Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Start System Button -E378-
   • Removing and Installing. Refer to Start System Button -E378-, REMOVING AND INSTALLING .
2. Start/Stop Mode Button -E693-
   • Removing and Installing. Refer to Start/Stop Mode Button -E693-, REMOVING AND INSTALLING .
3. Parking Aid Button -E266-
   • Removing and Installing. Refer to Parking Aid Button -E266-, REMOVING AND INSTALLING .
4. Emergency Flasher Button -E229-
   • Removing and Installing. Refer to Emergency Flasher Button -E229-, REMOVING AND INSTALLING .
