Tire Pressure Monitoring Control Module -J502-: Removing

-- Turn off the ignition.

-- Loosen the right rear wheel housing liner in the back and fold it forward, refer to Removing

-- Disconnect the harness connector -1-.

-- Lightly press the tab -arrow- to the side and remove the Tire Pressure Monitoring Control Module -J502- -2- from the mount.

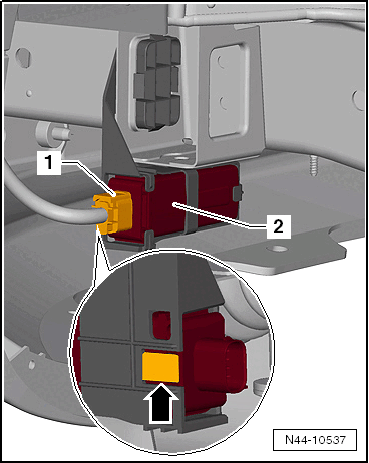

Fig 1: Disconnect Harness Connector
GWWN44-10537Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
