Overview: Tire Pressure Sensor And Metal Valve Sensor

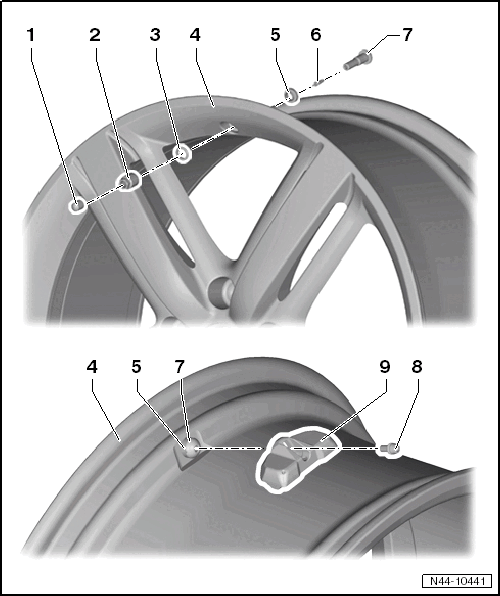

Fig 1: Tire Pressure Sensor And Metal Valve Component Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Valve Cap
2. Nut
   • 4 Nm
   • Individual component of -item  7-
3. Washer
   • Individual component of -item  7-
4. Disk Wheel
   • Tire mounting, refer to REMOVAL AND INSTALLATION
5. Seal
   • Individual component of -item  7-
6. Valve Core
   • Replace at every tire change
     NOTE: Never use brass valve inserts (corrosion!) Only use nickel valve inserts (silver).
7. Metal Valve
   • Supplied complete as a service part
   • Removing and installing, refer to METAL VALVE, REMOVING AND INSTALLING
8. Bolt
   • 4 Nm
   • Individual component of -item  7-
9. Tire Pressure Sensor
   • Left Front Tire Pressure Monitoring Sensor -G222-
   • Right Front Tire Pressure Monitoring Sensor -G223-
   • Left Rear Tire Pressure Monitoring Sensor -G224-
   • Right Rear Tire Pressure Monitoring Sensor -G225-
   • Removing and Installing for Service, refer to TIRE PRESSURE SENSOR, (SERVICE VERSION)
   • Removing and Installing for production, refer to TIRE PRESSURE SENSOR, (PRODUCTION VERSION)
     NOTE: The tire pressure sensors expire after approximately 10 years.
