Overview: Tire Pressure Monitoring System
NOTE:
The Tire Pressure Monitoring System (TPMS) specified within this information refers to the optional TPMS, which employs individual pressure sensors to determine individual tire pressures.
The base TPMS does not employ individual pressure sensors to determine individual tire pressures, but instead is an integral part of the Anti-lock Brake System (ABS). For more information on the ABS, refer to Description and Operation .

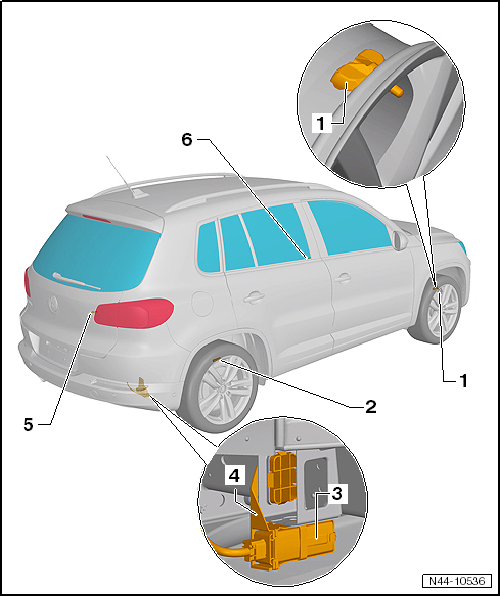

- Right Front Tire Pressure Monitoring Sensor -G223-
- Removing and Installing for Service, refer to TIRE PRESSURE SENSOR, (SERVICE VERSION)
- Removing and Installing for production, refer to TIRE PRESSURE SENSOR, (PRODUCTION VERSION)
- Right Rear Tire Pressure Monitoring Sensor -G225-
- Removing and Installing for Service, refer to TIRE PRESSURE SENSOR, (SERVICE VERSION)
- Removing and Installing for production, refer to TIRE PRESSURE SENSOR, (PRODUCTION VERSION)
- Tire Pressure Monitoring Control Module -J502-
- Removing and installing, refer to Tire Pressure Monitoring Control Module -J502-
- Component location: on the rear back panel on the right side.
- Tire Pressure Monitoring Control Module -J502- Mount.
- Removing and installing, refer to Tire Pressure Monitoring Control Module -J502- MOUNT
- Left Rear Tire Pressure Monitoring Sensor -G224-
- Removing and Installing for Service, refer to TIRE PRESSURE SENSOR, (SERVICE VERSION)
- Removing and Installing for production, refer to TIRE PRESSURE SENSOR, (PRODUCTION VERSION)
- Left Front Tire Pressure Monitoring Sensor -G222-
- Removing and Installing for Service, refer to TIRE PRESSURE SENSOR, (SERVICE VERSION)
- Removing and Installing for production, refer to TIRE PRESSURE SENSOR, (PRODUCTION VERSION)
