Engine And Transmission Mount Overview

WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

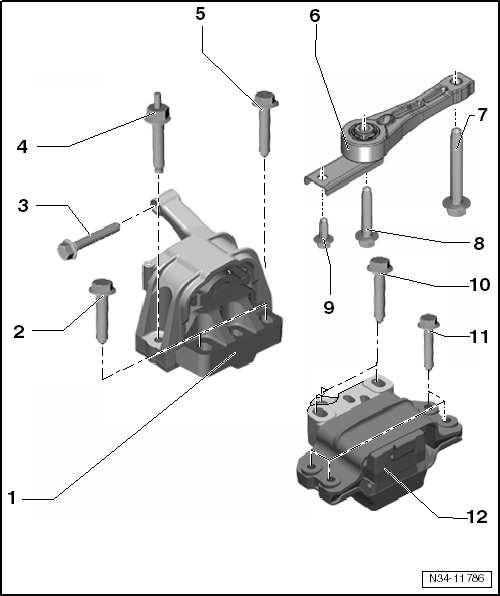

Fig 1: Engine And Transmission Mount Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine Mount
- Refer to Fastener Tightening Specifications .
Bolt
- Engine mount to engine mount bracket.
- Refer to Fastener Tightening Specifications .
Bolt
- Engine mount to body.
- Refer to Fastener Tightening Specifications .
Bolt
- Engine mount to body.
- Refer to Fastener Tightening Specifications .
Bolt
- Engine mount to body.
- Refer to Fastener Tightening Specifications .
Pendulum Support
- Refer to Special Tools .
Bolt
- Pendulum support to subframe.
- Refer to Special Tools .
Bolt
- Pendulum support to transmission.
- Refer to Special Tools .
Bolt
- Pendulum support to transmission.
- Refer to Special Tools .
Bolt
- 60 Nm +90° (1/4) additional turn.
- Always replace.
- Transmission mount to transmission.
Bolt
- Transmission mount to body.
- Refer to Description and Operation .
Transmission Mount
- Refer to Description and Operation .
