Rear Final Drive: Removing

Special tools and workshop equipment required

-- Raise the floor covering in the luggage compartment.

-- Remove the spare wheel.

Now, you have access to the marks -1- in the luggage compartment floor.

Fig 1: Identifying Luggage Compartment Floor Marks
GWWN39-10328Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The -arrow- points in the direction of travel.

-- Drill 2 holes -1- on the marks to 26 mm -a-. Remove any drill shavings while drilling, if possible.

Fig 2: Identifying Luggage Compartment Floor Holes
GWWN39-10329Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Deburr the holes and remove any shavings carefully.

Reestablish the corrosion protection with the materials specified by the manufacturer. Refer to Body Collision Repair.

-- Loosen and remove both bolts -1-.

Fig 3: Identifying Luggage Compartment Floor Holes
GWWN39-10329Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

You must replace these bolts later.

-- Lift the vehicle.

-- Remove the stabilizer bar. Refer to Removal and Installation .

-- Support the front exhaust pipe -A- using the Tensioning Strap T10038 on the driveshaft intermediate bearing.

Fig 4: Supporting Front Exhaust Pipe Using Tensioning Strap T10038 On Intermediate Bearing
GWWN39-10323Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the exhaust pipe bracket bolt -arrow- and bracket from the subframe.

Fig 5: Exhaust Pipe Bracket Bolt
GWWN39-10325Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the exhaust system at the clamping sleeve -arrows- and remove the rear exhaust system. Refer to [For transmission(s) 0A6, 09M] Description and Operation .

Fig 6: Disconnecting Exhaust System At Double Clamp
GWWV26-0733Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation below the engine/transmission. Refer to Description and Operation

-- Remove the pendulum support bolts -1 and 2-.

Fig 7: Identifying Pendulum Support Bolts
GWWN39-10232Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

In order not to damage the left rear level control system sensor:

-- Disconnect the harness connector, remove the sensor -1- and lay it on the control arm -A-.

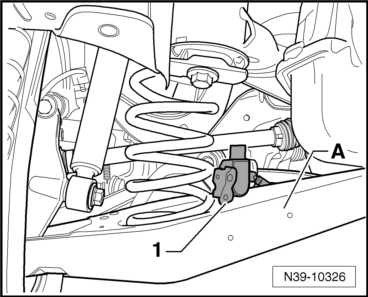

Fig 8: Control System Sensor & Control Arm
GWWN39-10326Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen but do not remove the driveshaft intermediate bearing bolts -arrows-.

Fig 9: Locating Center Bracket Screws
GWWN39-10215Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the engine and transmission forward by hand and secure in this position with a suitable piece of wood -A-.

Fig 10: Identifying Wooden Block
GWWN39-10324Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

So that noises due to imbalance do not occur later:

-- See if there are marks (colored dots) on the driveshaft flexible disc and rear final drive input flange -arrows-. If not, mark the position of the driveshaft flexible disc and rear final drive input flange with respect to one another -arrows-.

Fig 11: Aligning Markings On Driveshaft At Flange Of Haldex Clutch
GWWN39-0836Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the driveshaft flexible disc to input flange bolts -arrows-.

Fig 12: Identifying Rear Driveshaft Tube At Rear Final Drive With Joint Washer And Vibration Damper
GWWA39-0281Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the driveshaft from the final drive, and guide it upward in the center until it is under the fuel tank -2-. In this position, support it on the tunnel brace -1- using a suitable piece of wood.

Fig 13: Guiding Driveshaft Upward And Support It In Position With Suitable Piece Of Wood On Tunnel Support
GWWN39-10330Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
CAUTION:

When doing this, be careful not to push in the fuel tank -2-.

When removing and installing the drive axles, the final drive must be moveable in the rear area.

-- To do this, loosen the bolt -arrow- on the front mounting bracket no more than 5 turns.

Fig 14: Identifying Screw From Front Final Drive Bracket
GWWA37-10008Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the left drive axle from the final drive.

-- Lift the final drive -A- in the rear -arrow 1- and push it as far as possible to the right -arrow 2-.

Fig 15: Lifting Final Drive In Rear And Pushing It As Far As Possible To The Right
GWWN39-10331Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the left drive axle -B- from the flange and carefully lower it.

-- Put the final drive back into its installed position.

-- Disconnect the right drive axle from the final drive.

-- Lift the final drive -A- in the rear -arrow 1- and push it as far as possible to the left -arrow 2-.

Fig 16: Lifting Final Drive In Rear And Pushing It As Far As Possible To The Left
GWWN39-10332Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the right drive axle -B- from the flange and carefully lower it.

-- Put the final drive back into its installed position.

-- Support the final drive using the Engine/Gearbox Jack VAG1383A and secure it using the universal support with the strap to keep it from falling.

-- Remove the bolt -arrow- at the front mounting bracket.

Fig 17: Identifying Screw From Front Final Drive Bracket
GWWA37-10008Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

You must replace this bolt later.

-- Remove the washer -C- on top of the mounting bracket.

Fig 18: Identifying Wood Block Place On Universal Support And Supporting Final Drive With Engine And Transmission Jack V.A.G 1383 A
GWWN39-10238Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the final drive in the vehicle on an angle as shown in the figure while lowering it at the same time.

Fig 19: Positioning Final Drive In Vehicle On An Angle
GWWN39-10337Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the harness connector -A- from the all wheel drive control module.

Fig 20: Identifying Ventilation Lines At Final Drive And All-Wheel Drive Control Module J492 Connector
GWWN39-10225Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the vent lines -arrows- from the final drive.

-- To remove, lower the final drive more and pull it forward, while ensuring that there is sufficient clearance with respect to other components.
